ISO 5752/EN 558 Butterfly Valve - DN500 (20") Mono Flanged Short Valve
ISO 5752/EN 558 Butterfly Valve - DN500 (20") Mono Flanged Short Valve
SKU:VAL-57729b
High-performance DN500 (20") Mono Flanged Valve with ISO 5752/EN 558 compliance. Manual/Electric/Pneumatic/Hydraulic actuation.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
ISO 5752/EN 558 Butterfly Valve - DN500 (20") Mono Flanged Short Valve
$999.99
Quantity: 1
Claim Your Seller Account
ISO 5752/EN 558 Butterfly Valve - DN500 (20") Mono Flanged Short Valve
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO 5752/EN 558 Butterfly Valve DN500 (20") Mono Flanged Short Valve is a high-performance valve designed for industrial applications. With a durable body made of GGG40 Ductile Iron and a range of material options including Stainless Steel and Carbon Steel, this valve offers reliable performance. It features a Vulcanized Rubber Lining for enhanced durability and tight shut-off pressure ranging from 2.5 to 16 bar, meeting ISO 5208 Rate A standards. Available in manual, electric, pneumatic, and hydraulic actuation, this valve is versatile and suitable for various installation configurations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

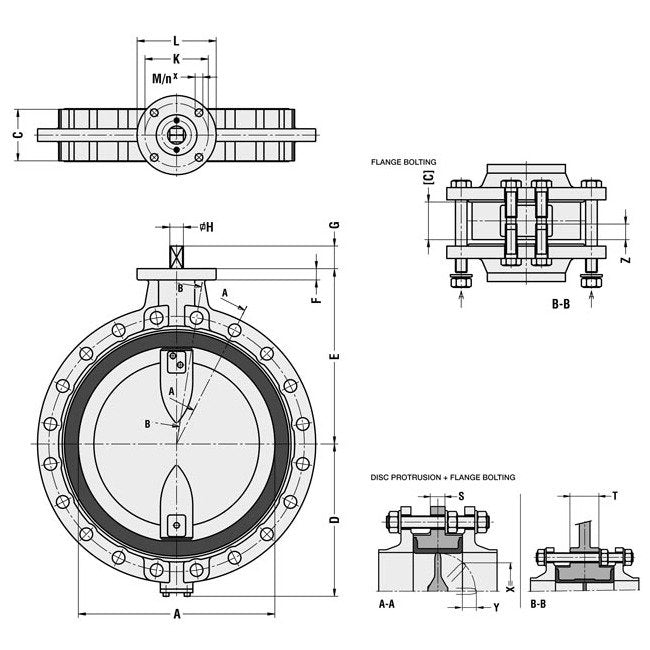

Specifications A
486 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | DNV | FM | GL | NKK | RIN | RMRS
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications B Diameter
576 mm
Specifications C
127 mm
Specifications D
360 mm
Specifications E
413 mm
Specifications F
25 mm
Specifications Flange Connections
DIN PN 10 | DIN PN 6
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications S
32 mm
Specifications Size
DN500 - 20"
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications T
60 mm
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
135.0 kg
Specifications X
470 mm
Specifications Y
180 mm
