ISO 5752/EN 558 Compliant Butterfly Valve - Series EVMS
ISO 5752/EN 558 Compliant Butterfly Valve - Series EVMS
SKU:VAL-21cc27
Premium ISO 5752/EN 558 Compliant Butterfly Valve - DN350 to DN1000, Manual/Electric/Pneumatic Actuation, Multiple Material Options
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
ISO 5752/EN 558 Compliant Butterfly Valve - Series EVMS
$1,999.99
Quantity: 1
Claim Your Seller Account
ISO 5752/EN 558 Compliant Butterfly Valve - Series EVMS
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

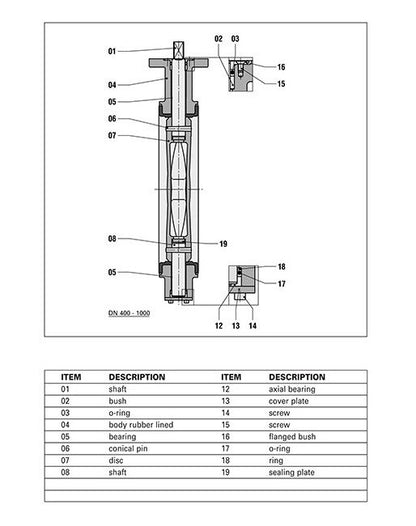

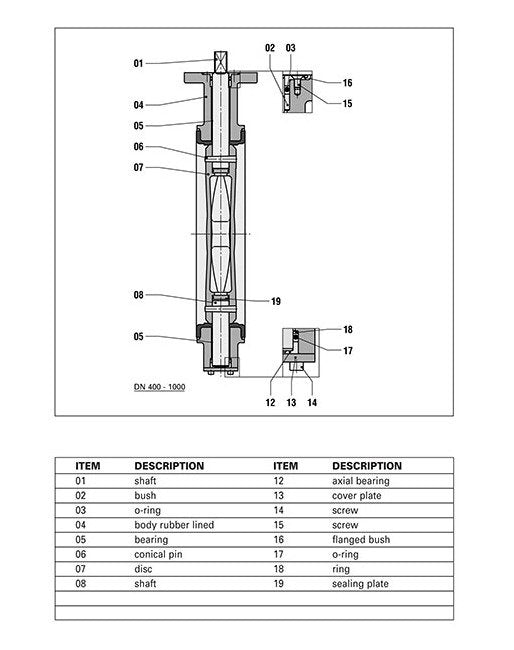

The Series EVMS Mono Flanged Short Valve is designed for precision and durability. Built with a concentric butterfly valve featuring a vulcanized rubber lining, this valve meets ISO 5752/EN 558 standards for face-to-face dimensions. Available in sizes DN350 - 1000 (14" - 40"), this valve offers versatile actuation options including manual, electric, pneumatic, and hydraulic. With materials like Ductile Iron, Cast Iron, Carbon Steel, Stainless Steel, and Bronze RG10, it ensures reliability in various applications. It functions as an isolating valve for on/off control and regulation, meeting stringent leakage standards and holding type approvals from major bodies like DNV, ABS, GL, and more.
Product Specifications

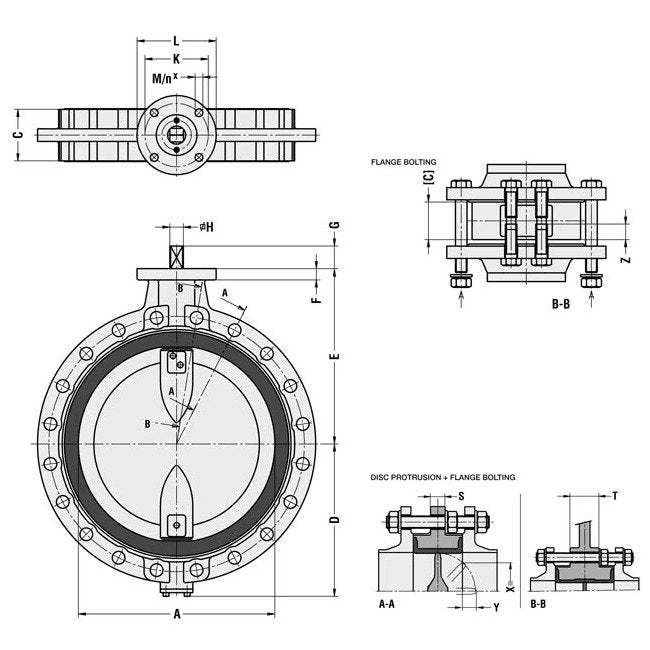

Specifications A
786 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | DNV | FM | GL | NKK | RIN | RMRS
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications B Diameter
880 mm
Specifications C
190 mm
Specifications D
525 mm
Specifications E
610 mm
Specifications F
25 mm
Specifications Flange Connections
DIN PN 10 | DIN PN 6
Specifications G
60 mm
Specifications H Diameter
46 mm
Specifications Iso 5211
F16
Specifications K
165 mm
Specifications L
210 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
21 mm
Specifications N Number Of Holes
4
Specifications S
40 mm
Specifications Size
DN800 - 32"
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications T
115 mm
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
365.0 kg
Specifications X
763 mm
Specifications Y
298 mm
Specifications Z At Pn 61016
Through Bolting
