ISO 5752 S-20 Series 50 Wafer Valves

Name: ISO 5752 S-20 Series 50 Wafer Valves
Brand: World Wide Metric, Inc.
SKU: VAL-0b0b47
Price: 749.99 USD
Availability: OutOfStock

SKU:VAL-0b0b47

High-quality ISO 5752 S-20 Series 50 Wafer Valves for industrial applications. Durable materials and precision engineering ensure reliable performance.

$749.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ISO 5752 S-20 Series 50 Wafer Valves are precision-engineered to meet the rigorous demands of industrial applications. With a size range from 1-1/2" to 40" and body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves offer unparalleled durability and reliability. Featuring disc materials like Ductile Iron, Stainless Steel, and Aluminum Bronze, and stem materials crafted from high-grade Stainless Steel, these valves ensure optimal performance under diverse operating conditions. The seat and packaging materials, available in NBR, EPDM, Viton, and Teflon, guarantee leak-free operation and longevity.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Teflon | Viton

Specifications Available Stem Material

Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

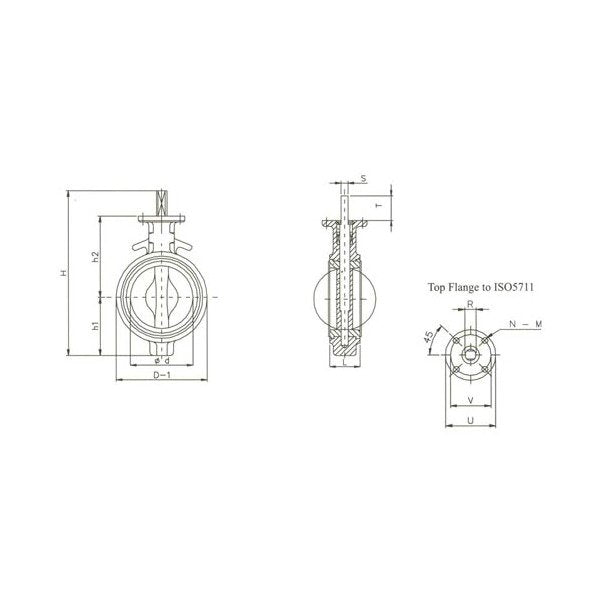

Specifications D

387 mm

Specifications D 1

475 mm

Specifications H

817 mm

Specifications H1

343 mm

Specifications H2

369 mm

Specifications L

102 mm

Specifications Size

400 - 16"

Specifications Standard

ISO

Specifications Stem R

35 mm

Specifications Stem T

60 mm

Specifications Top Flange To Iso 5211 M Diameter

18 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

175 mm

Specifications Top Flange To Iso 5211 V

140 mm

Specifications Type

Butterfly Valve

Specifications Weight

64 kg

ISO 5752 S-20 Series 50 Wafer Valves
