ISO 5752 S-20 Series 50 Wafer Valves
ISO 5752 S-20 Series 50 Wafer Valves
SKU:VAL-f8185c
Explore the versatile and durable ISO 5752 S-20 Series 50 Wafer Valves designed for unmatched performance and compliance with ISO standards.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
ISO 5752 S-20 Series 50 Wafer Valves
$1,299.99
Quantity: 1
Claim Your Seller Account
ISO 5752 S-20 Series 50 Wafer Valves
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO 5752 S-20 Series 50 Wafer Valves are expertly designed butterfly valves suitable for a wide range of applications. With a size range from 40A to 1000A (1-1/2" - 40") and body materials including cast iron, ductile iron, carbon steel, stainless steel, and bronze, these valves offer exceptional durability and versatility. Featuring disc materials of ductile iron, stainless steel, and aluminum bronze, along with a stainless steel stem and various seat and packing material options, these valves ensure reliable performance and longevity. Compliant with ISO standards, these valves are a top choice for both consumer and institutional buyers seeking high-quality industrial valves.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

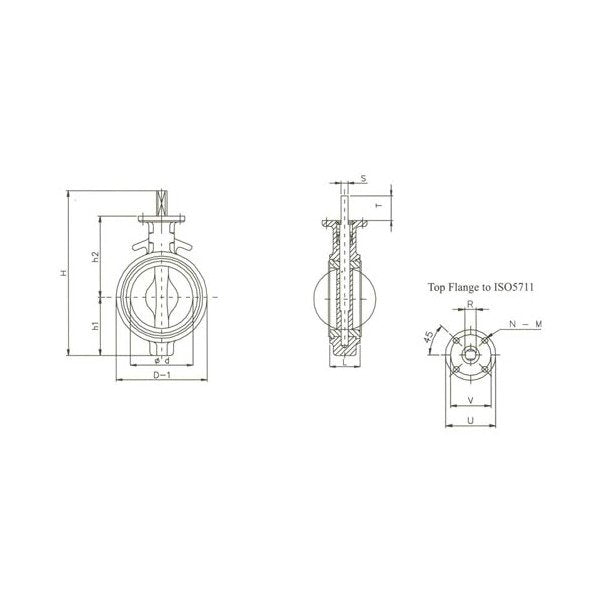

Specifications D
690 mm
Specifications D 1
800 mm
Specifications H
1355 mm
Specifications H1
580 mm
Specifications H2
574 mm
Specifications L
165 mm
Specifications Size
700 - 28"
Specifications Standard
ISO
Specifications Stem R
70 mm
Specifications Stem T
120 mm
Specifications Top Flange To Iso 5211 M Diameter
18 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
8
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
254 mm
Specifications Type
Butterfly Valve
Specifications Weight
377 kg
