ISO 5752 Series 50 Wafer Valves
ISO 5752 Series 50 Wafer Valves
SKU:VAL-2a7d83
High-performance ISO 5752 Series 50 Wafer Valves for reliable and versatile operations. Available in various sizes and materials.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
ISO 5752 Series 50 Wafer Valves
$349.99
Quantity: 1
Claim Your Seller Account
ISO 5752 Series 50 Wafer Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO 5752 Series 50 Wafer Valves offer reliable performance for a wide range of applications. These butterfly valves feature a face to face design following ISO standards, ensuring accurate dimensions and compatibility. With options for various flange connections including DIN, JIS, and ANSI, and a size range from 40A to 1000A, these valves are versatile and durable. Constructed from high-quality materials such as Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves provide excellent corrosion resistance and longevity. The disc, stem, seat, and packing materials are carefully selected for optimal performance and reliability.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

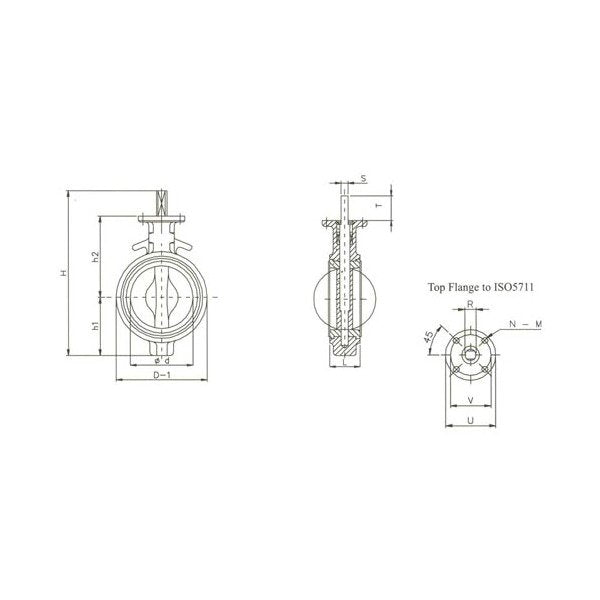

Specifications D
65 mm
Specifications D 1
115 mm
Specifications H
247 mm
Specifications H1
88 mm
Specifications H2
130 mm
Specifications L
46 mm
Specifications Size
065 - 2-1/2"
Specifications Standard
ISO
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Type
Butterfly Valve
Specifications Weight
4.0 kg
