ISO 5752 Series 50 Wafer Valves
ISO 5752 Series 50 Wafer Valves
SKU:VAL-59a83b
Premium ISO 5752 Series 50 Wafer Valves in various sizes and materials. ISO compliant for reliable fluid control.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
ISO 5752 Series 50 Wafer Valves
$299.99
Quantity: 1
Claim Your Seller Account
ISO 5752 Series 50 Wafer Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO 5752 Series 50 Wafer Valves are meticulously engineered to meet the highest industry standards, featuring a wide size range from 1-1/2" to 40" and a variety of body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. With options for Disc Material, Stem Material, and Seat Material, these butterfly valves offer exceptional performance and durability. Whether for industrial, commercial, or institutional applications, these valves ensure reliable operation and precise control. Compliant with ISO standards, these valves are a dependable choice for your fluid control needs.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

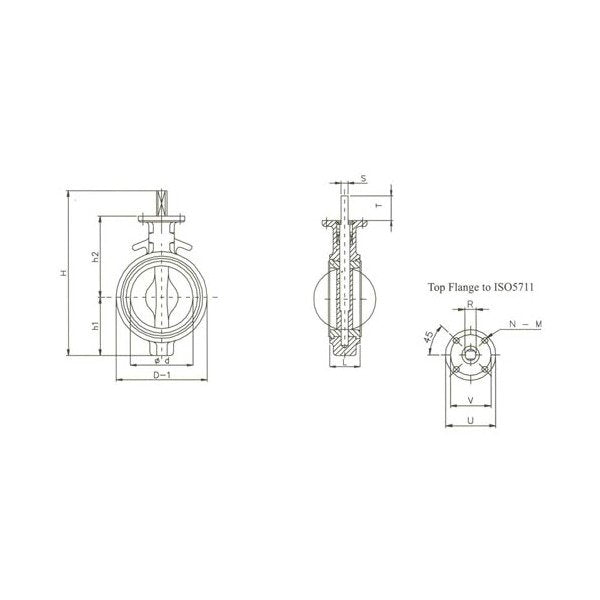

Specifications D
80 mm
Specifications D 1
128 mm
Specifications H
266 mm
Specifications H1
93 mm
Specifications H2
143 mm
Specifications L
46 mm
Specifications Size
080 - 3"
Specifications Standard
ISO
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Type
Butterfly Valve
Specifications Weight
4.40 kg
