ISO 8752 Slotted Spring Pin - 2.5x18mm, Nickel Stainless Steel

Name: ISO 8752 Slotted Spring Pin - 2.5x18mm, Nickel Stainless Steel
Brand: SPIROL International Corporation
SKU: SLO-168cfc
Price: 75.78 USD
Availability: OutOfStock

SKU:SLO-168cfc

Premium ISO 8752 Slotted Pin - 2.5x18mm, Plain Finish, Nickel Stainless Steel

$75.78

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience top-quality with the ISO 8752 Slotted Spring Pin in 2.5mm diameter and 18mm length. Crafted from Nickel Stainless Steel, it meets ISO 8752 standards, ensuring durability and precision. The plain finish, chamfered edges, and work-hardened heat treatment make it ideal for various applications. Each package contains 1000 units, priced at $75.78. Order now and benefit from quick shipping within 2-3 business days.

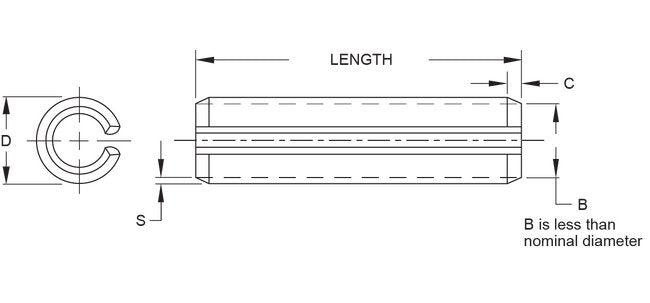

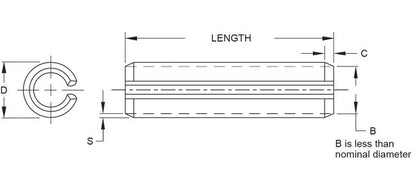

Product Specifications

Specifications Chamfer Length C Max

0.60 mm

Specifications Chamfer Length C Min

0.40 mm

Specifications Diameter D Max

2.90 mm

Specifications Diameter D Min

2.80 mm

Specifications Finish

Plain

Specifications Heat Treatment

Work Hardened

Specifications Length L

18 mm

Specifications Material Grade

UNS S30200 / S30400 X10CrNi18-8 (1.4310)

Specifications Material Type

Nickel Stainless Steel

Specifications Nominal Dia

2.5 mm

Specifications Order Processing Note

Orders typically ship in 2-3 business days. Orders received after 3pm EST will be processed on the next business day.

Specifications Package Type

Box

Specifications Price Per Package Unit

75.78 USD | 101.01 CAD | 81.44 EUR | 39.31 GBP

Specifications Recommended Hole Size Max

2.60 mm

Specifications Recommended Hole Size Min

2.50 mm

Specifications Specification

Meets or exceeds ISO 8752 specifications

Specifications Units Per Box

1000

Specifications Weight Per Piece

0.0004482 kg | 0.0009882 lb

ISO 8752 Slotted Spring Pin - 2.5x18mm, Nickel Stainless Steel
