ISO 8752 Slotted Spring Pins - 2mm x 4mm - Nickel Stainless Steel
ISO 8752 Slotted Spring Pins - 2mm x 4mm - Nickel Stainless Steel
SKU:SLO-bd0080
High-grade ISO 8752 Slotted Spring Pins - 2mm x 4mm - Nickel Stainless Steel, meet ISO 8752 specs, reliable & corrosion-resistant.
Regular price
$5.99
Regular price
Sale price
$5.99
Unit price
per
Initiate Order
ISO 8752 Slotted Spring Pins - 2mm x 4mm - Nickel Stainless Steel
$5.99
Quantity: 1
Claim Your Seller Account
ISO 8752 Slotted Spring Pins - 2mm x 4mm - Nickel Stainless Steel
$5.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to SPIROL's high-quality ISO 8752 Slotted Spring Pins meticulously crafted from nickel stainless steel meeting ISO 8752 specifications. Available in diameters from 2mm to 12mm, these pins offer exceptional strength, corrosion resistance, and precise dimensions. With a plain finish and chamfered edges for easy installation, these pins undergo stringent quality control to ensure reliability and durability. Ideal for a wide range of applications, SPIROL's Slotted Spring Pins guarantee performance excellence in challenging environments.

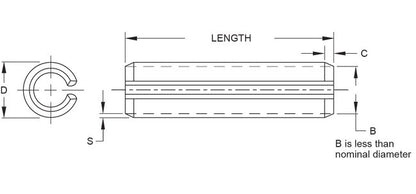

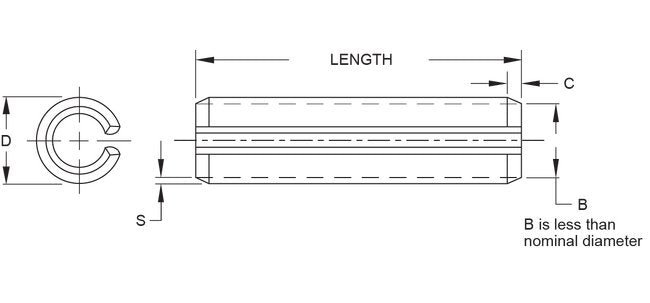

Product Specifications
Specifications Chamfer Length C Max
0.55 mm
Specifications Chamfer Length C Min
0.35 mm
Specifications Diameter D Max
2.40 mm
Specifications Diameter D Min
2.30 mm
Specifications Finish
Plain
Specifications Heat Treatment
Work Hardened
Specifications Length L
4 mm
Specifications Material Grade
UNS S30200 / S30400 X10CrNi18-8 (1.4310)
Specifications Material Type
Nickel Stainless Steel
Specifications Nominal Dia
2 mm
Specifications Order Processing Note
Orders typically ship in 2-3 business days. Orders received after 3pm EST will be processed on the next business day.
Specifications Package Type
Box
Specifications Recommended Hole Size Max
2.10 mm
Specifications Recommended Hole Size Min
2.00 mm
Specifications Specification
Meets or exceeds ISO 8752 specifications
Specifications Units Per Box
1
Specifications Weight Per Piece
0.0000639 kg | 0.0001408 lb
