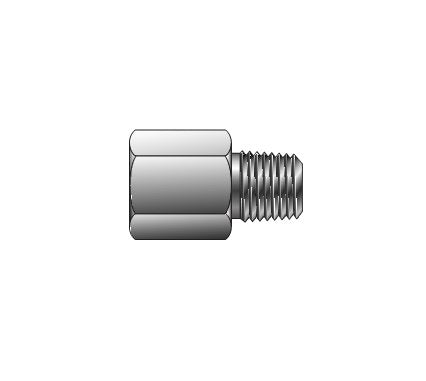

ISO Certified Female NPT to Male BSP Taper Adapter
ISO Certified Female NPT to Male BSP Taper Adapter
SKU:FIT-b16bbe
High-quality ISO Certified adapter for secure NPT to BSP connections. Stainless steel & brass construction. Precise ISO thread design for leak-free joints.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
ISO Certified Female NPT to Male BSP Taper Adapter
$34.99
Quantity: 1
Claim Your Seller Account
ISO Certified Female NPT to Male BSP Taper Adapter
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Certified Female NPT to Male BSP Taper Adapter by Parker is meticulously engineered to facilitate seamless connections between NPT and ISO threaded components. Crafted from premium stainless steel and brass, this adapter ensures reliable performance under high pressures, with working pressures reaching up to 4300 psi (300 bar). With a precise design conforming to ISO thread forms, this adapter guarantees leak-free joints, whether using thread sealants or peripheral seals. Trust in Parker's industry-leading quality for precise instrumentation and ISO conversion fittings.

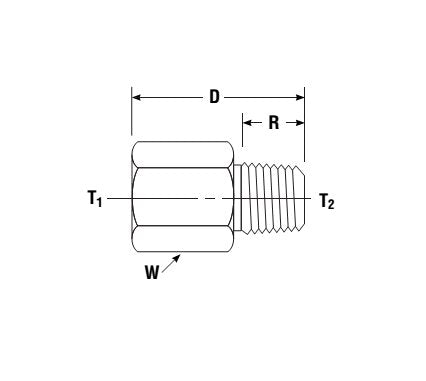

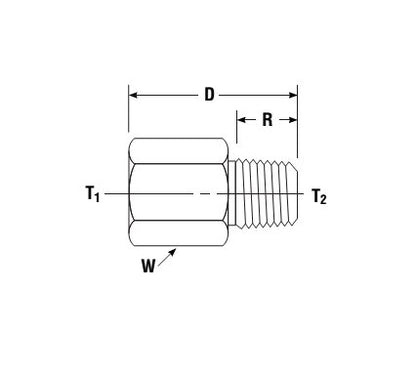

Product Specifications
Dimensions Bspt Thread T2
3/4-14
Dimensions Connection Type
FNPT to BSPT
Dimensions D
2.00 in
Dimensions Npt Thread T1
3/4-14
Dimensions R
.75 in
Dimensions Working Pressure Brass
2300 psi | 160 bar
Dimensions Working Pressure Stainless Steel
4300 psi | 300 bar
Dimensions W Hex
1 5/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
