ISO-Compliant Series 50 Butterfly Valve
ISO-Compliant Series 50 Butterfly Valve
SKU:VAL-943663
Reliable Series 50 Butterfly Valve, ISO 5752 S-20 compliant, various sizes & materials, ideal for industrial use.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
ISO-Compliant Series 50 Butterfly Valve
$799.99
Quantity: 1
Claim Your Seller Account
ISO-Compliant Series 50 Butterfly Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 50 Wafer Valve is a versatile butterfly valve designed with precision to meet ISO 5752 S-20 standards. Available in sizes ranging from 1-1/2" to 40" and constructed from high-quality materials such as Cast Iron, Stainless Steel, and Bronze, this valve ensures durability and reliability in diverse industrial applications. With options for different seat materials like NBR, EPDM, and Viton, the Series 50 Valve provides optimal sealing performance. Its easy installation and compatibility with DIN, JIS, and ANSI flange connections make it a preferred choice for both consumer and institutional buyers.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

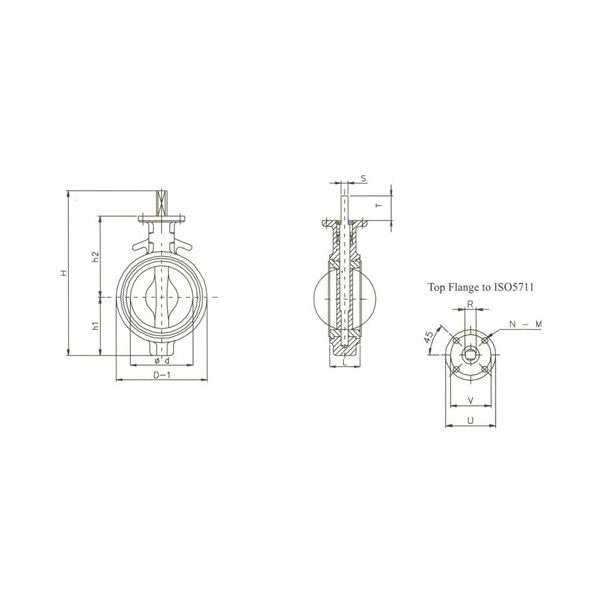

Specifications D
785 mm
Specifications D 1
920 mm
Specifications H
1495 mm
Specifications H1
630 mm
Specifications H2
669 mm
Specifications L
190 mm
Specifications Size
800 - 32"
Specifications Standard
ISO
Specifications Stem R
80 mm
Specifications Stem T
140 mm
Specifications Top Flange To Iso 5211 M Diameter
18 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
8
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
254 mm
Specifications Type
Butterfly Valve
Specifications Weight
542 kg
