ISO Compliant Square Negative Turning Blank with 0.198/0.206in Thickness
ISO Compliant Square Negative Turning Blank with 0.198/0.206in Thickness
SKU:TUR-33f007
Achieve precision machining with the ISO Compliant Square Negative Turning Blank. Thickness: 0.198/0.206in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Compliant Square Negative Turning Blank with 0.198/0.206in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
ISO Compliant Square Negative Turning Blank with 0.198/0.206in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Compliant Square Negative Turning Blank features a precise thickness range of 0.198 to 0.206 inches, ensuring accuracy in machining operations. With an Inscribed Circle diameter of 0.389 to 0.395 inches and a 90-degree angle, this turning blank offers exceptional dimensional stability. The ISO style hole, measuring 0.171 to 0.177 inches, enhances versatility. Grade availability can be tailored to specific requirements upon request, making it suitable for various turning applications.

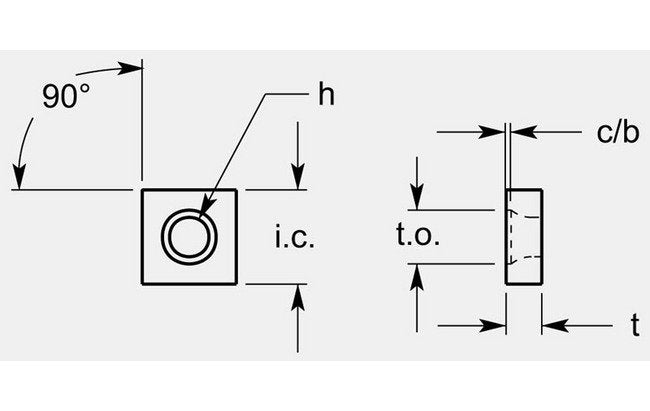

Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.046 / 0.052 in
Dimensional Specification Hole
0.171 / 0.177 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Dimensional Specification To
0.233 / 0.239 in
Grade Availability Grade Availability
Available on Request
