ISO Diamond Negative Chipbreaker, 1/32 in Radius with Hole
ISO Diamond Negative Chipbreaker, 1/32 in Radius with Hole
SKU:TUR-bc61a0
Enhance turning blanks with our ISO Diamond Negative Chipbreaker for precise finishing. 1/32 in radius, 80º angle, with efficient chip evacuation hole.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
ISO Diamond Negative Chipbreaker, 1/32 in Radius with Hole
$24.99
Quantity: 1
Claim Your Seller Account
ISO Diamond Negative Chipbreaker, 1/32 in Radius with Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your turning blanks with our ISO Style Diamond Negative F1 Chipbreaker. This chipbreaker features a precise 1/32 inch radius, perfect for finishing operations with an 80-degree angle. The integrated hole design allows for efficient chip evacuation. With thickness options ranging from 0.191 to 0.197 inches and an inscribed circle of 0.497 to 0.503 inches, this chipbreaker ensures accuracy and performance. Available grade options upon request to suit specific needs.

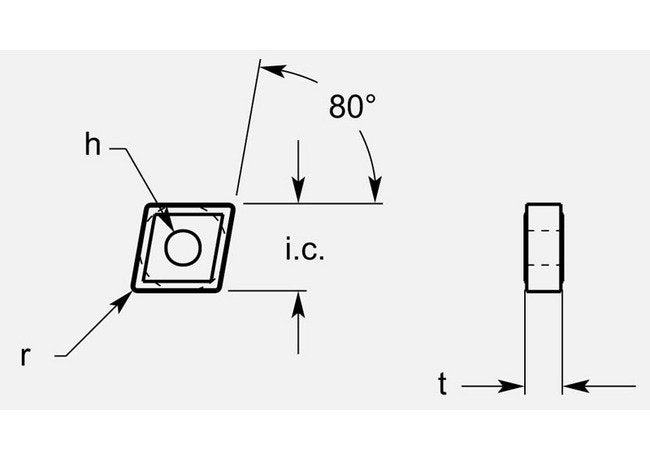

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.191 / 0.197 in
Grade Availability Grade Availability
Available on Request
