ISO Diamond Negative Chipbreaker, r 3/64 in
ISO Diamond Negative Chipbreaker, r 3/64 in
SKU:TUR-a0ad93
Enhance finishing operations with precision using our ISO Diamond Negative Chipbreaker. Customizable Grade Availability for optimal performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Diamond Negative Chipbreaker, r 3/64 in
$29.99
Quantity: 1
Claim Your Seller Account
ISO Diamond Negative Chipbreaker, r 3/64 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

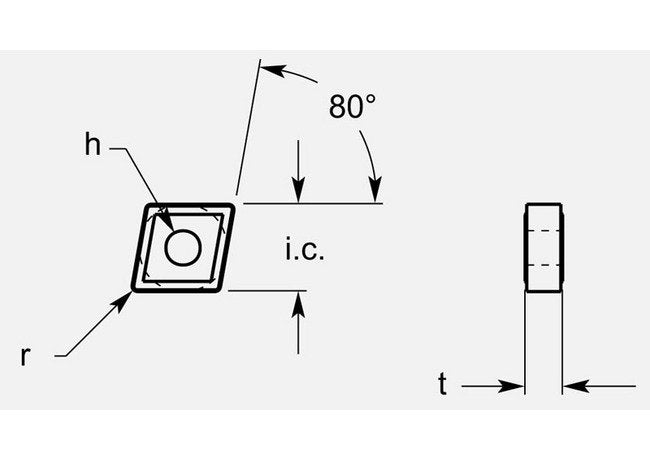

The ISO Diamond Negative Chipbreaker enhances finishing operations with precision and efficiency. Featuring an Inscribed Circle of 0.497/0.503 in, an 80° Angle, and a precise Radius of 3/64 in, this chipbreaker ensures high-quality results. The included hole of 0.200 / 0.206 in adds versatility for various applications. Grade Availability is customizable to meet specific requirements, ensuring optimal performance for your turning projects.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.191 / 0.197 in
Grade Availability Grade Availability
Available on Request
