ISO Diamond Negative Chipbreaker, Thickness 0.109/0.115 in
ISO Diamond Negative Chipbreaker, Thickness 0.109/0.115 in
SKU:TUR-13a858
High precision ISO Diamond Chipbreaker for turning blanks. Thickness: 0.109/0.115 in. Grade Availability: In Stock.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
ISO Diamond Negative Chipbreaker, Thickness 0.109/0.115 in
$49.99
Quantity: 1
Claim Your Seller Account
ISO Diamond Negative Chipbreaker, Thickness 0.109/0.115 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Diamond Negative Chipbreaker is designed for precision turning operations, featuring a thickness of 0.109/0.115 inches, an Inscribed Circle of 0.264/0.270 inches, and a specialized hole size suitable for various applications. With a Grade Availability of 'In Stock', this chipbreaker offers exceptional performance and durability, meeting the stringent standards required for industrial and government procurement.

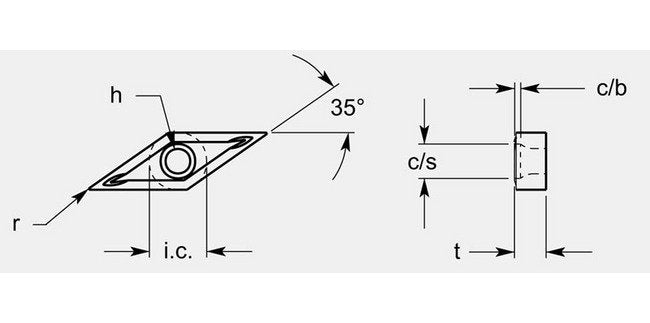

Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Cb
0.028 / 0.036 in
Dimensional Specification Cs
0.143 / 0.149 in
Dimensional Specification Hole
0.108 / 0.112 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.109 / 0.115 in
Grade Availability Grade Availability
In Stock
