ISO Diamond Negative Chipbreaker, Thickness 0.204/0.211 in
ISO Diamond Negative Chipbreaker, Thickness 0.204/0.211 in
SKU:TUR-c8d040
Enhance turning efficiency with our ISO Diamond Negative Chipbreaker, designed for precision and performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Diamond Negative Chipbreaker, Thickness 0.204/0.211 in
$29.99
Quantity: 1
Claim Your Seller Account
ISO Diamond Negative Chipbreaker, Thickness 0.204/0.211 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your turning operations with our ISO Diamond Negative Chipbreaker. Featuring precise dimensional specifications including Thickness (t) of 0.204/0.211 in and Inscribed Circle (i.c.) of 0.389/0.395 in, this chipbreaker offers exceptional performance and efficiency. With Grade Availability upon request, it suits diverse machining needs.
Ready to Grow Without Cash Flow Constraints?

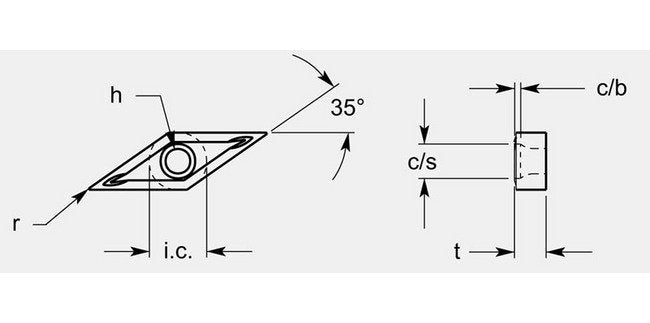

Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Cb
0.038 / 0.044 in
Dimensional Specification Cs
0.233 / 0.239 in
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.204 / 0.211 in
Grade Availability Grade Availability
Available on Request
