ISO Diamond Negative Turning Blank, 0.166 / 0.174 in
ISO Diamond Negative Turning Blank, 0.166 / 0.174 in
SKU:TUR-509bbb
Premium ISO Diamond Negative Turning Blank, 0.166 / 0.174 in, for precise machining
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
ISO Diamond Negative Turning Blank, 0.166 / 0.174 in
$39.99
Quantity: 1
Claim Your Seller Account
ISO Diamond Negative Turning Blank, 0.166 / 0.174 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

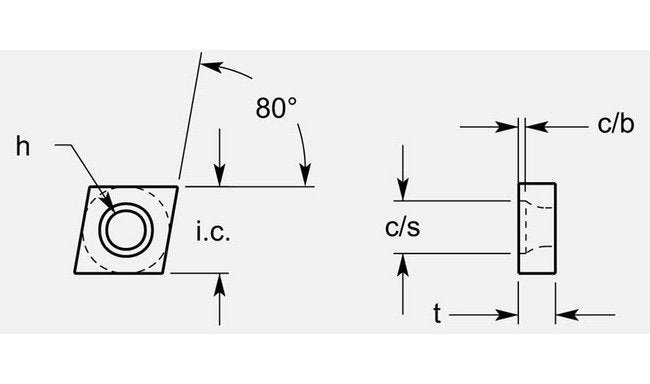

The ISO Diamond Negative Turning Blank boasts a precise thickness of 0.166 / 0.174 in, designed for exceptional turning performance. With an inscribed circle of 0.389/0.395 in and an 80° angle, this blank offers superior accuracy and durability. The hole dimensions of 0.158 / 0.164 in, combined with a C/S of 0.216 / 0.222 in and a CB of 0.043 in, ensure optimal machining results. This grade is available upon request, meeting rigorous industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.043 in
Dimensional Specification Cs
0.216 / 0.222 in
Dimensional Specification Hole
0.158 / 0.164 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Thickness T
0.166 / 0.174 in
Grade Availability Grade Availability
Available on Request
