ISO Diamond Negative Turning Blank, Radius 1/32 in with Hole

Name: ISO Diamond Negative Turning Blank, Radius 1/32 in with Hole
Brand: Ultra-Met
SKU: TUR-f94d73
Price: 29.99 USD
Availability: OutOfStock

SKU:TUR-f94d73

High-precision ISO Diamond Negative Turning Blank with r 1/32 in radius for efficient finishing operations.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ISO Diamond Negative Turning Blank with an innovative r 1/32 in radius and an ISO style hole offers precision and efficiency in finishing operations. With a thickness range of 0.129 - 0.135 in and an inscribed circle of 0.497 - 0.503 in, this chipbreaker is designed to meet the demands of high-precision turning applications. Its 80° angle ensures optimal cutting performance, making it ideal for both consumer and institutional buyers seeking top-quality turning blanks.

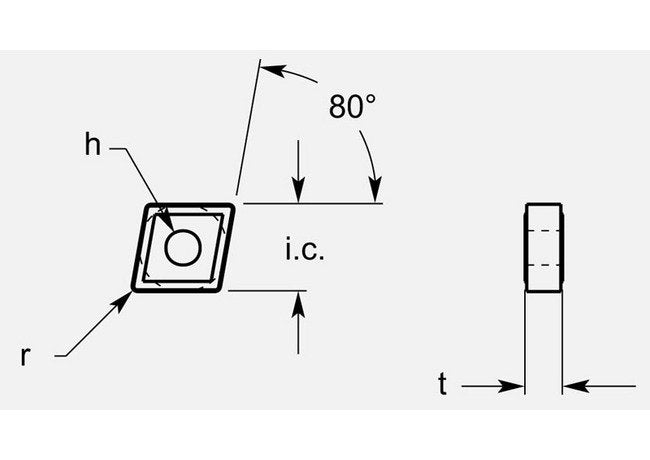

Product Specifications

Classifications Operation

Finishing

Dimensional Specification Angle A

80 Âº

Dimensional Specification Hole

0.200 / 0.206 in

Dimensional Specification Inscribed Circle Ic

0.497/0.503 in

Dimensional Specification Radius R

1/32 in

Dimensional Specification Thickness T

0.129 / 0.135 in

Grade Availability Grade Availability

Available on Request

ISO Diamond Negative Turning Blank, Radius 1/32 in with Hole
