ISO Diamond Negative Turning Blank with 0.104/0.112" Thickness
ISO Diamond Negative Turning Blank with 0.104/0.112" Thickness
SKU:TUR-315811
Accurate ISO Diamond Negative turning blank, 0.104/0.112" thickness, Grade Availability: In Stock.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Diamond Negative Turning Blank with 0.104/0.112" Thickness
$29.99
Quantity: 1
Claim Your Seller Account
ISO Diamond Negative Turning Blank with 0.104/0.112" Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

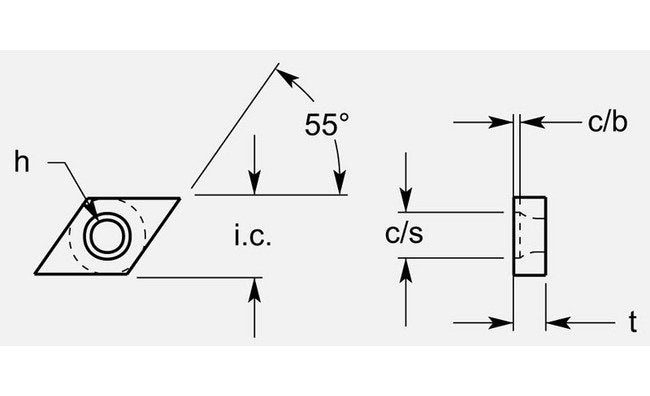

The ISO Diamond Negative with ISO Style Hole turning blank offers a precise thickness range of 0.104 to 0.112 inches, ensuring uniformity in your turning projects. With an Inscribed Circle diameter of 0.264 to 0.270 inches and an optimal Angle of 55°, this blank guarantees accurate and efficient performance. The hole size of 0.107 to 0.113 inches and C/S & CB dimensions of 0.143 to 0.149 inches and 0.036 to 0.042 inches respectively, further enhance its versatility. Grade Availability: In Stock.
Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification Cb
0.036 / 0.042 in
Dimensional Specification Cs
0.143 / 0.149 in
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Thickness T
0.104 / 0.112 in
Grade Availability Grade Availability
In Stock
