ISO Edge Milling Blank, 0.260 / 0.268 in Thickness
ISO Edge Milling Blank, 0.260 / 0.268 in Thickness
SKU:MIL-6398b5
High-quality ISO Edge Milling Blank with 0.260 / 0.268 in thickness, 10º angle, and ISO-style hole. Precision and durability in one.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Edge Milling Blank, 0.260 / 0.268 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
ISO Edge Milling Blank, 0.260 / 0.268 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Edge Milling Blank combines precision with durability, featuring a thickness of 0.260 / 0.268 in, a 10º angle, and ISO-style hole of 0.173 / 0.177 in. Crafted for excellence and reliability, this blank ensures high-performance milling results. Suitable for a range of applications, this product meets stringent industry standards, making it an ideal choice for both consumer and institutional buyers.

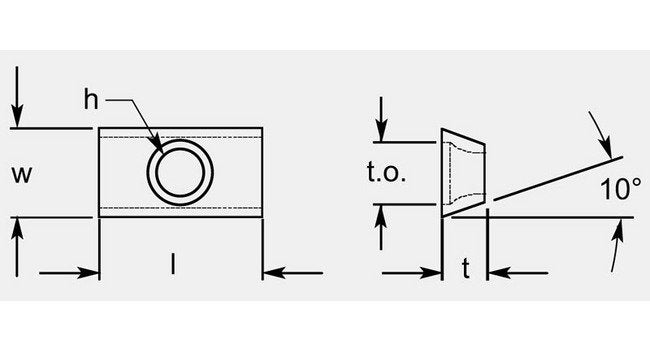

Product Specifications
Dimensional Specification Angle A
10 º
Dimensional Specification Cs
ISO
Dimensional Specification Hole
0.173 / 0.177 in
Dimensional Specification L
0.986 / 0.992 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Dimensional Specification To
0.234 / 0.238 in
Dimensional Specification Width W
0.517 / 0.523 in
Grade Availability Grade Availability
Available on Request
