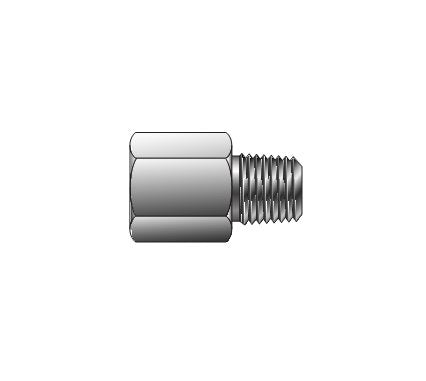

ISO Female BSPP to Male NPT Adapter
ISO Female BSPP to Male NPT Adapter
SKU:FIT-ddca84
High-quality ISO Female BSPP to Male NPT Adapter for seamless connections between NPT and ISO threads. Durable stainless steel or brass construction for reliable performance under high pressure.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
ISO Female BSPP to Male NPT Adapter
$24.99
Quantity: 1
Claim Your Seller Account
ISO Female BSPP to Male NPT Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Female BSPP to Male NPT Adapter by Parker sets the standard for quality and reliability in connecting components with NPT and ISO thread configurations. Crafted from stainless steel or brass, these conversion fittings offer exceptional performance under high pressure, meeting stringent ASTM specifications. Designed for secure and leak-free connections, this adapter ensures compatibility and durability in diverse industrial applications.
Product Specifications

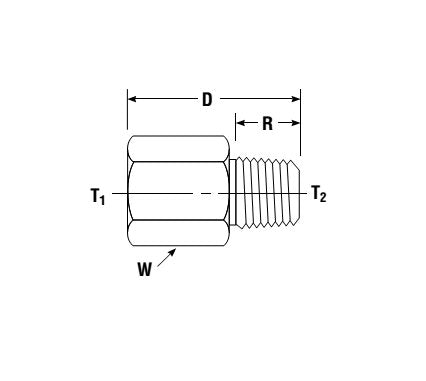

Dimensions Bspp Thread T1
1/2-14
Dimensions Connection Type
BSPP to MNPT
Dimensions D
1.88 in
Dimensions Npt Thread T2
1/2-14
Dimensions R
.76 in
Dimensions Working Pressure Brass
2400 psi | 160 bar
Dimensions Working Pressure Stainless Steel
4600 psi | 320 bar
Dimensions W Hex
1 1/8
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
