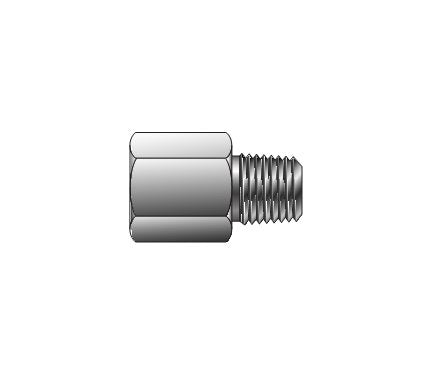

ISO Female BSPP to Male NPT Adapter
ISO Female BSPP to Male NPT Adapter
SKU:FIT-180ce8
Precision-engineered ISO Female BSPP to Male NPT Adapter for seamless thread conversions, high durability, and leak-free connections in industrial settings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
ISO Female BSPP to Male NPT Adapter
$24.99
Quantity: 1
Claim Your Seller Account
ISO Female BSPP to Male NPT Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Female BSPP to Male NPT Adapter by Parker is expertly crafted to facilitate seamless connections between components with different thread configurations. Engineered to the highest quality standards, this adapter ensures precision and durability in industrial applications. Made of premium stainless steel or brass, it offers reliable performance with working pressures of up to 6100 psi. Designed for compatibility with NPT and ISO threads, it guarantees secure and leak-free connections, meeting the strictest procurement standards.
Product Specifications

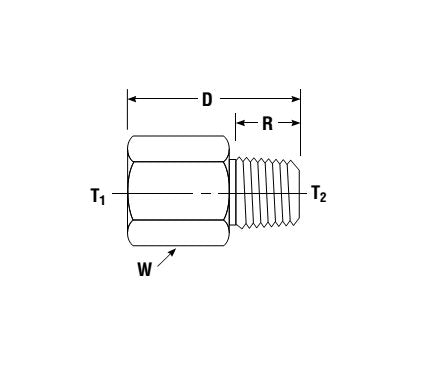

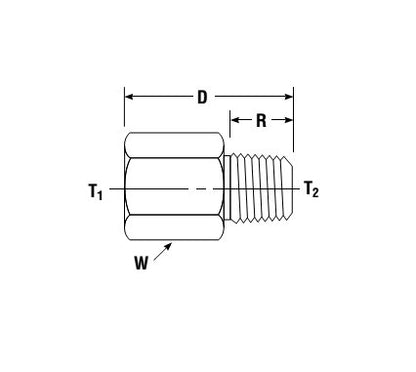

Dimensions Bspp Thread T1
1/8-28
Dimensions Connection Type
BSPP to MNPT
Dimensions D
1.09 in
Dimensions Npt Thread T2
1/8-27
Dimensions R
.38 in
Dimensions Working Pressure Brass
3200 psi | 220 bar
Dimensions Working Pressure Stainless Steel
6100 psi | 420 bar
Dimensions W Hex
9/16
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
