ISO Female NPT to Male BSP Taper Adapter
ISO Female NPT to Male BSP Taper Adapter
SKU:FIT-996faa
Parker's top-tier ISO adapter for precise NPT to BSP connections. Durable stainless steel/brass, high-pressure capacity, and quality assurance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
ISO Female NPT to Male BSP Taper Adapter
$34.99
Quantity: 1
Claim Your Seller Account
ISO Female NPT to Male BSP Taper Adapter
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Female NPT to Male BSP Taper Adapter by Parker is expertly crafted to seamlessly connect components with NPT and BSP threads, ensuring precision and reliability. Designed in compliance with the highest quality standards, this adapter allows for secure connections in systems requiring ISO conversion fittings. Featuring durable stainless steel or brass construction, with a working pressure of up to 5000 psi, this adapter guarantees superior performance and longevity. Trust in Parker's expertise for versatile, high-quality solutions in industrial applications.
Product Specifications

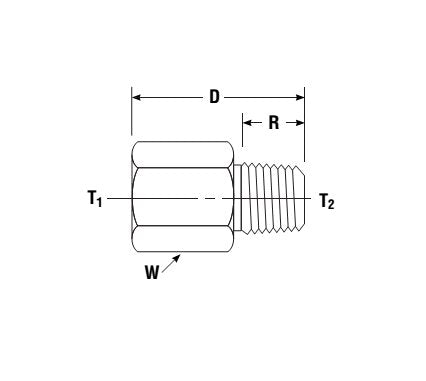

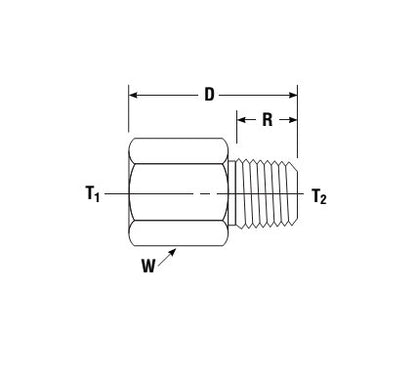

Dimensions Bspt Thread T2
3/8-19
Dimensions Connection Type
FNPT to BSPT
Dimensions D
1.49 in
Dimensions Npt Thread T1
3/8-18
Dimensions R
.56 in
Dimensions Working Pressure Brass
2600 psi | 180 bar
Dimensions Working Pressure Stainless Steel
5000 psi | 340 bar
Dimensions W Hex
7/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
