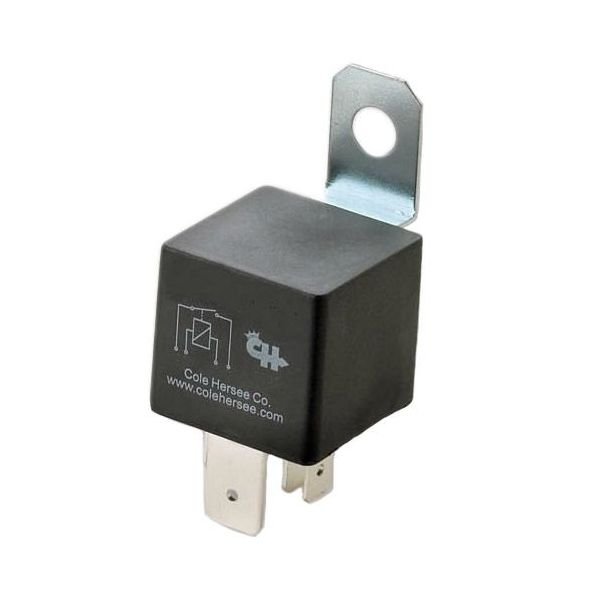

ISO Mini Relay 40A/12V Form C Power Relay - CVP Series

Name: ISO Mini Relay 40A/12V Form C Power Relay - CVP Series
Brand: Marsh Electronics, Inc.
SKU: CVP-8d40ab
Price: 12.99 USD
Availability: OutOfStock

SKU:CVP-8d40ab

High-performance ISO Mini Relay 40A/12V Form C Power Relay for automotive and industrial applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ISO Mini Relay 40A/12V Form C Power Relay from the CVP series is a high-quality, single pole double throw (SPDT) relay suitable for a wide range of applications in vehicles and machinery. This relay features silver alloy contacts, ensuring reliable performance and longevity. With a voltage rating of 12V and a current capacity of 40A, this relay is designed to meet the demanding requirements of automotive, industrial, and institutional systems. Its blade terminals make installation easy and secure, while the Form C (SPDT) circuitry provides versatility in switching between normally closed (NC) and normally open (NO) configurations.

Product Specifications

Specifications Circuit Form

Form C

Specifications Contacts

Normally Closed (NC) | Normally Open (NO)

Specifications Contact Material

Silver Alloy

Specifications Current

40 A

Specifications Direct Current Dc Voltage

12 V

Specifications Series

ISO Mini Relays

Specifications Terminal Type

Blade

Specifications Type

Single Pole Double Throw (SPDT)

ISO Mini Relay 40A/12V Form C Power Relay - CVP Series
