ISO NPT to BSPP Male Hex Nipple Fitting
ISO NPT to BSPP Male Hex Nipple Fitting
SKU:FIT-7300ec
Reliable Parker ISO NPT to BSPP Male Hex Nipple Fitting for secure high-pressure connections, tailored to meet institutional standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
ISO NPT to BSPP Male Hex Nipple Fitting
$45.99
Quantity: 1
Claim Your Seller Account
ISO NPT to BSPP Male Hex Nipple Fitting
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO NPT to BSPP Male Hex Nipple Fitting by Parker offers a reliable solution for connecting components with NPT and ISO thread configurations. Engineered to the highest quality standards, this fitting ensures secure connections between systems. With robust materials like stainless steel and brass, it provides a working pressure of up to 6400 psi (440 bar), meeting stringent industry requirements. The design features taper threaded ends and compatibility with various sealing washers for optimal performance. Trust this Parker fitting for precise connections that withstand high pressures and meet institutional procurement standards.
Product Specifications

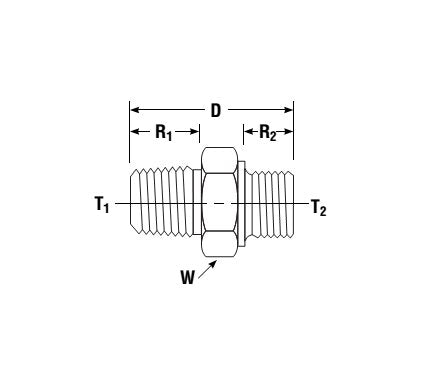

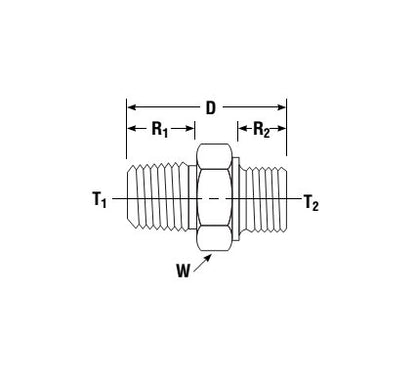

Dimensions Bspp Thread T2
3/4-14
Dimensions Connection Type
NPT x BSPP
Dimensions D
1.95 in
Dimensions Npt Thread T1
3/4-14
Dimensions R1
.75 in
Dimensions R2
.63 in
Dimensions Working Pressure Brass
3600 psi | 250 bar
Dimensions Working Pressure Stainless Steel
6400 psi | 440 bar
Dimensions W Hex
1 5/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
