ISO Octagon Milling Blank, 0.205 / 0.213 in Thickness
ISO Octagon Milling Blank, 0.205 / 0.213 in Thickness
SKU:MIL-bbd0e4
High-quality ISO Octagon Milling Blank for precise machining needs. Thickness: 0.205 / 0.213 in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Octagon Milling Blank, 0.205 / 0.213 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
ISO Octagon Milling Blank, 0.205 / 0.213 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

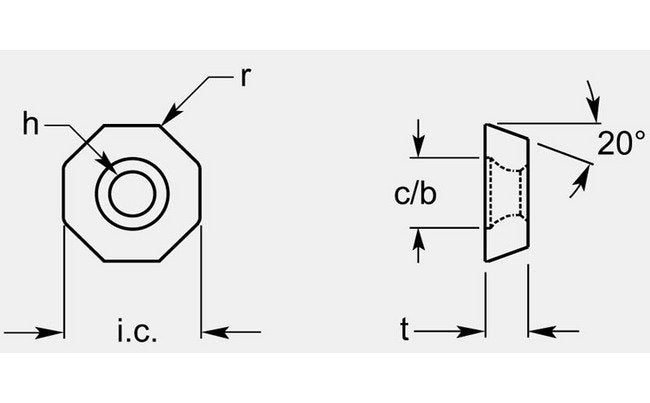

The ISO Octagon Milling Blank features a precise thickness of 0.205 / 0.213 inches and an Inscribed Circle of 0.639 / 0.645 inches. With a Radius of 1/32 inch and Angle of 20 degrees, this blank is meticulously designed for milling applications. The ISO Style Hole of 0.201 / 0.207 inches adds versatility to its usage. Grade Availability is customizable based on requirements.
Product Specifications
Dimensional Specification Angle A
20 º
Dimensional Specification Cb
0.327 / 0.333 in
Dimensional Specification Hole
0.201 / 0.207 in
Dimensional Specification Inscribed Circle Ic
0.639/0.645 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.205 / 0.213 in
Grade Availability Grade Availability
Available on Request
