ISO Series 50 Wafer Valves
ISO Series 50 Wafer Valves
SKU:VAL-813c0f
Discover versatile and reliable ISO Series 50 Wafer Valves in sizes 1-1/2" to 40". Crafted from durable materials to meet high performance demands.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
ISO Series 50 Wafer Valves
$349.99
Quantity: 1
Claim Your Seller Account
ISO Series 50 Wafer Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Series 50 Wafer Valves are expertly designed to meet the highest industry standards, with a face-to-face dimension according to ISO 5752 S-20. Available in sizes ranging from 1-1/2" to 40" and crafted from durable materials such as Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves ensure exceptional performance and longevity. With options for different disc, stem, seat, and packing materials, these valves guarantee versatility and reliability for various applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

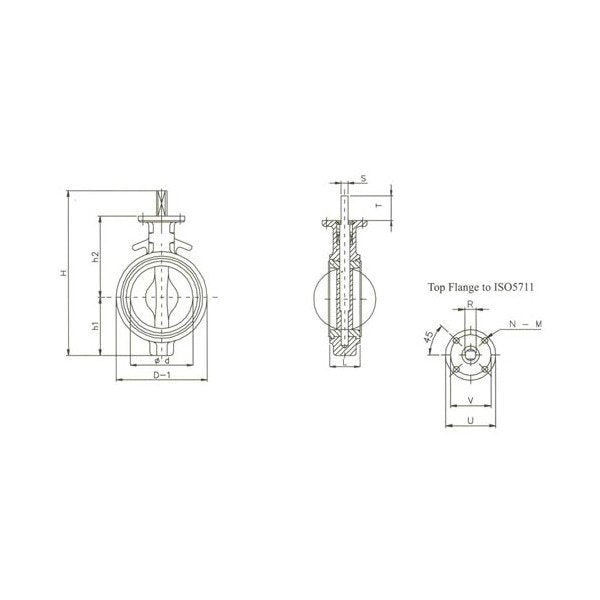

Specifications D
100 mm
Specifications D 1
153 mm
Specifications H
298 mm
Specifications H1
105 mm
Specifications H2
161 mm
Specifications L
52 mm
Specifications Size
100 - 4"
Specifications Standard
ISO
Specifications Stem R
16 mm
Specifications Stem S
10 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Type
Butterfly Valve
Specifications Weight
5.9 kg
