ISO Series 50 Wafer Valves - Institutional-Grade Butterfly Valves
ISO Series 50 Wafer Valves - Institutional-Grade Butterfly Valves
SKU:VAL-036754
ISO Series 50 Wafer Valves - Precision-engineered butterfly valves for institutional and government buyers.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
ISO Series 50 Wafer Valves - Institutional-Grade Butterfly Valves
$1,299.99
Quantity: 1
Claim Your Seller Account
ISO Series 50 Wafer Valves - Institutional-Grade Butterfly Valves
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Series 50 Wafer Valves are precision-engineered to meet the stringent requirements of institutional and government buyers. Compliant with ISO 5752 standards, these butterfly valves feature a wide size range from 40A to 1000A, catering to diverse applications. Constructed from robust materials such as Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves ensure durability and corrosion resistance. The available seat materials include NBR, EPDM, Viton, and Teflon, offering versatility and compatibility with various fluids. With a focus on performance and reliability, these valves are ideal for demanding industrial settings.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

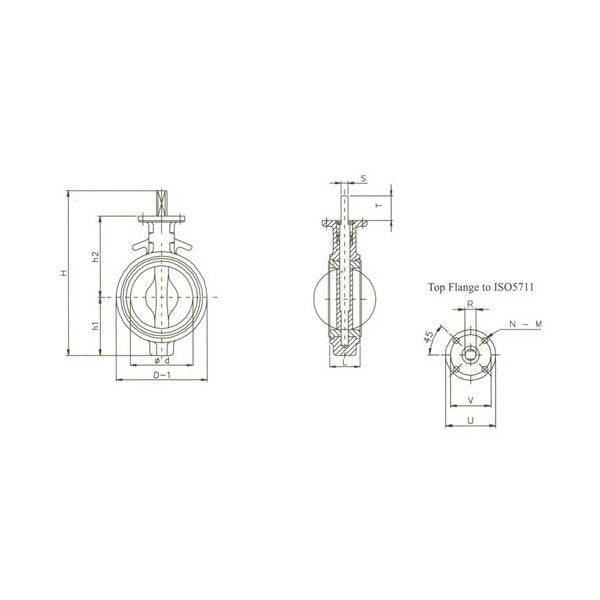

Specifications D
729 mm
Specifications D 1
857 mm
Specifications H
1445 mm
Specifications H1
656 mm
Specifications H2
615 mm
Specifications L
190 mm
Specifications Size
750 - 30"
Specifications Standard
ISO
Specifications Stem R
70 mm
Specifications Stem T
120 mm
Specifications Top Flange To Iso 5211 M Diameter
18 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
8
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
254 mm
Specifications Type
Butterfly Valve
Specifications Weight
460 kg
