ISO Square Negative F5 Chipbreaker, 0.205/0.211 in Thickness
ISO Square Negative F5 Chipbreaker, 0.205/0.211 in Thickness
SKU:TUR-d83b44
High-performing ISO Square Negative F5 Chipbreaker, 0.205/0.211 in thickness, for precision turning operations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
ISO Square Negative F5 Chipbreaker, 0.205/0.211 in Thickness
$39.99
Quantity: 1
Claim Your Seller Account
ISO Square Negative F5 Chipbreaker, 0.205/0.211 in Thickness
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

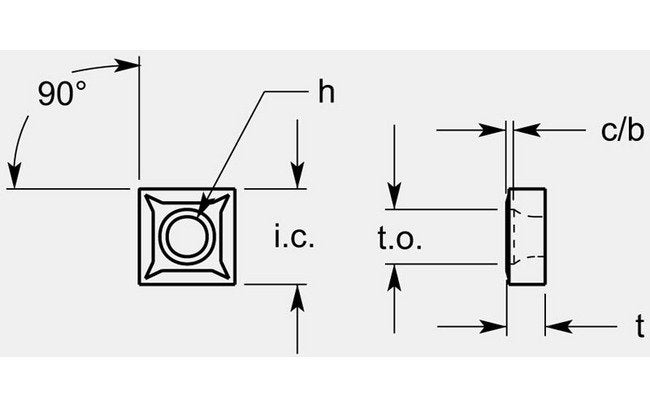

The ISO Square Negative F5 Chipbreaker is precision-engineered for superior turning performance. With a thickness of 0.205/0.211 inches, an inscribed circle of 0.514/0.520 inches, and a 90° angle, this chipbreaker ensures efficient finishing operations. The ISO style hole of 0.213/0.219 inches and CB/TO dimensions of 0.037/0.043 inches and 0.292/0.298 inches respectively, provide excellent chip control and accuracy. Available upon request, this chipbreaker is designed to meet the highest performance standards.
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.037 / 0.043 in
Dimensional Specification Hole
0.213 / 0.219 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.205 / 0.211 in
Dimensional Specification To
0.292 / 0.298 in
Grade Availability Grade Availability
Available on Request
