ISO Square Negative F5 Chipbreaker with Precision Hole, 0.173 / 0.179 in Thickness
ISO Square Negative F5 Chipbreaker with Precision Hole, 0.173 / 0.179 in Thickness
SKU:TUR-1b2cab
Enhance turning blanks with precision ISO Square Negative F5 Chipbreaker. Perfect for finishing, in-stock now.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Square Negative F5 Chipbreaker with Precision Hole, 0.173 / 0.179 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
ISO Square Negative F5 Chipbreaker with Precision Hole, 0.173 / 0.179 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your turning blanks with the ISO Square Negative F5 Chipbreaker. Crafted for precision, this chipbreaker features a 90° angle, 0.164 / 0.170 in hole, and exceptional CB and TO tolerances. Ideal for finishing operations and in-stock for immediate use.
Product Specifications
Classifications Operation
Finishing

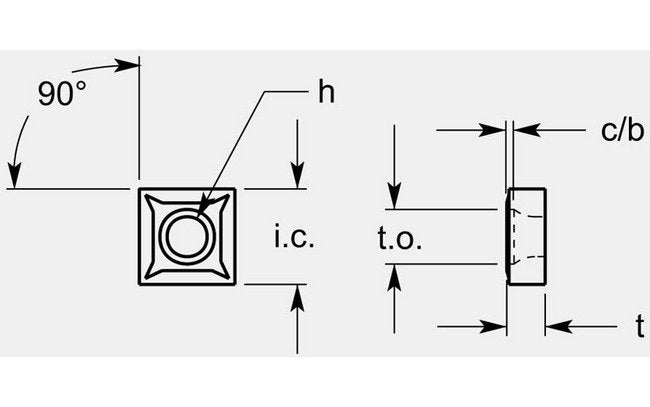

Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.030 / 0.036 in
Dimensional Specification Hole
0.164 / 0.170 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Thickness T
0.173 / 0.179 in
Dimensional Specification To
0.233 / 0.239 in
Grade Availability Grade Availability
In Stock
