ISO Square Negative Turning Blank, 0.198/0.206 in
ISO Square Negative Turning Blank, 0.198/0.206 in
SKU:TUR-db3ff8
Precise ISO Square Negative turning blank, thickness 0.198 / 0.206 in. Customizable grade options available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Square Negative Turning Blank, 0.198/0.206 in
$29.99
Quantity: 1
Claim Your Seller Account
ISO Square Negative Turning Blank, 0.198/0.206 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

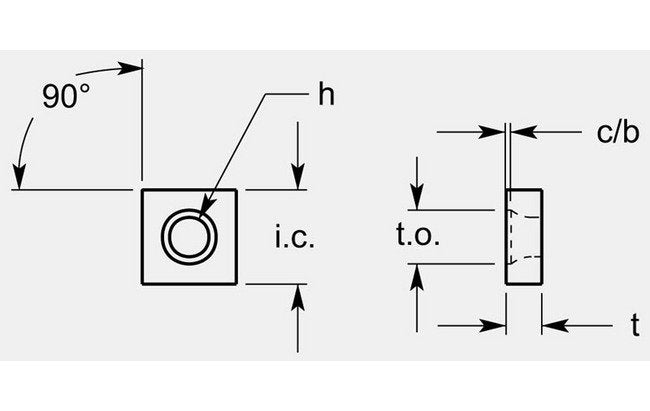

Discover the precision of our ISO Square Negative with ISO Style Hole turning blank. With a thickness of 0.198 / 0.206 inches, an inscribed circle of 0.327 / 0.333 inches, and a standard 90-degree angle, this blank is engineered for accuracy and durability. The hole diameter measures 0.131 / 0.137 inches, with a precise CB (Corner Break) of 0.028 / 0.034 inches and TO (Thickness Offset) of 0.174 / 0.180 inches. Grade availability is customizable to meet your specific needs, making this blank ideal for a wide range of turning applications.
Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.028 / 0.034 in
Dimensional Specification Hole
0.131 / 0.137 in
Dimensional Specification Inscribed Circle Ic
0.327/0.333 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Dimensional Specification To
0.174 / 0.180 in
Grade Availability Grade Availability
Available on Request
