ISO Square Negative Turning Blank, 0.260/0.268 in Thickness
ISO Square Negative Turning Blank, 0.260/0.268 in Thickness
SKU:TUR-1bd617
Enhance turning precision with our ISO square negative blank. Thickness: 0.260/0.268 in, Hole: 0.213/0.219 in, Grade customization available.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
ISO Square Negative Turning Blank, 0.260/0.268 in Thickness
$34.99
Quantity: 1
Claim Your Seller Account
ISO Square Negative Turning Blank, 0.260/0.268 in Thickness
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

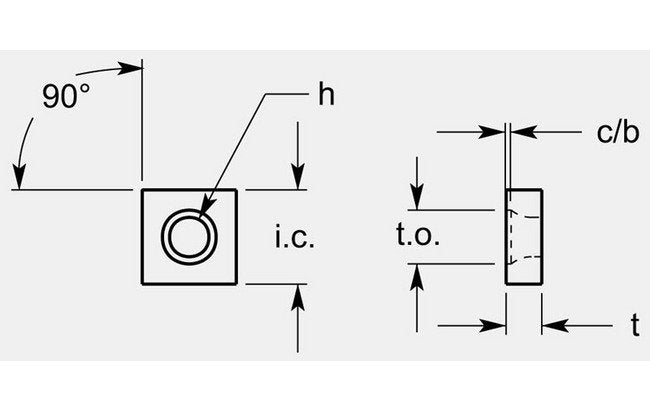

Upgrade your turning projects with precision using our ISO square negative turning blank. With a thickness range of 0.260 to 0.268 inches, an inscribed circle of 0.514 to 0.520 inches, and a 90-degree angle, this blank offers high-quality performance and precise machining capabilities. The ISO style hole specifications of 0.213 to 0.219 inches and CB dimensions of 0.043 to 0.049 inches ensure compatibility with a wide range of turning applications. Grades are available upon request for customization to specific project requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.043 / 0.049 in
Dimensional Specification Hole
0.213 / 0.219 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Dimensional Specification To
0.292 / 0.298 in
Grade Availability Grade Availability
Available on Request
