ISO Square Positive Chipbreaker with Hole, 0.193 / 0.199 in
ISO Square Positive Chipbreaker with Hole, 0.193 / 0.199 in
SKU:MIL-465346
Enhance precision and durability with the ISO Square Positive Chipbreaker, thickness 0.193 / 0.199 in. Customizable grades available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Square Positive Chipbreaker with Hole, 0.193 / 0.199 in
$29.99
Quantity: 1
Claim Your Seller Account
ISO Square Positive Chipbreaker with Hole, 0.193 / 0.199 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

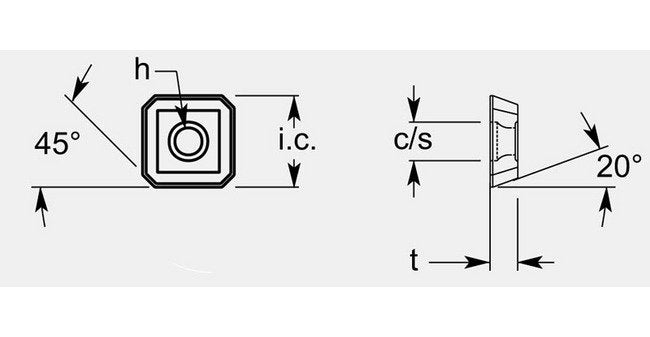

The ISO Square Positive Chipbreaker is designed with precision in mind, featuring a Thickness of 0.193 / 0.199 in, Inscribed Circle of 0.527/0.533 in, and an Angle of 45 degrees. With a hole diameter of 0.214 / 0.220 in and a sturdy C/S of 0.292 / 0.298 in, this chipbreaker ensures high performance and durability. Grade availability can be customized as per your specific requirements.
Product Specifications
Dimensional Specification Angle A
45 º
Dimensional Specification Cs
0.292 / 0.298 in
Dimensional Specification Hole
0.214 / 0.220 in
Dimensional Specification Inscribed Circle Ic
0.527/0.533 in
Dimensional Specification Thickness T
0.193 / 0.199 in
Grade Availability Grade Availability
Available on Request
