ISO Style Diamond Negative Chipbreaker, 0.141/0.147 in Thickness
ISO Style Diamond Negative Chipbreaker, 0.141/0.147 in Thickness
SKU:TUR-17a5aa
Precision ISO Style Diamond Negative Chipbreaker for professional turning needs
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
ISO Style Diamond Negative Chipbreaker, 0.141/0.147 in Thickness
$34.99
Quantity: 1
Claim Your Seller Account
ISO Style Diamond Negative Chipbreaker, 0.141/0.147 in Thickness
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

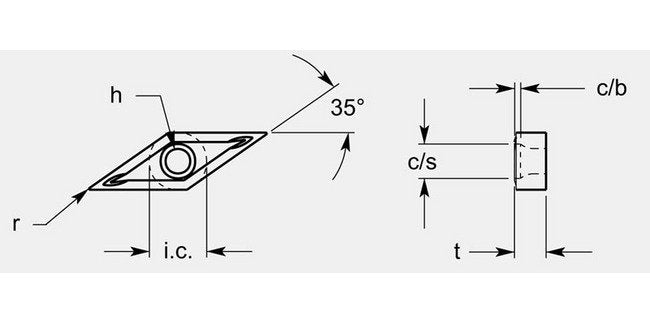

The ISO Style Diamond Negative Chipbreaker offers precise turning capabilities with a thickness of 0.141/0.147 inches, inscribed circle of 0.264/0.270 inches, and a razor-sharp radius of 1/64 inch. Designed at a strategic 35-degree angle, this chipbreaker’s hole measures 0.108/0.112 inches, ensuring superior cutting performance. With a C/S of 0.143/0.149 inches and a CB of 0.028/0.036 inches, this chipbreaker excels in delivering efficient and accurate results. Grade Availability is customizable upon request, making it ideal for a wide range of turning applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Cb
0.028 / 0.036 in
Dimensional Specification Cs
0.143 / 0.149 in
Dimensional Specification Hole
0.108 / 0.112 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.141 / 0.147 in
Grade Availability Grade Availability
Available on Request
