The Diamond Negative Chipbreaker with ISO Style Hole features a variable thickness of 0.204 to 0.211 inches, providing versatility for different machining needs. With an Inscribed Circle ranging from 0.389 to 0.395 inches and a sharp 35-degree angle, this chipbreaker ensures precision cutting with optimal chip control. The hole diameter of 0.170 to 0.176 inches and a sturdy CB dimension of 0.038 to 0.044 inches enhance stability during machining processes. Available in stock, this chipbreaker is designed to meet the high standards of turning blanks in industrial applications.

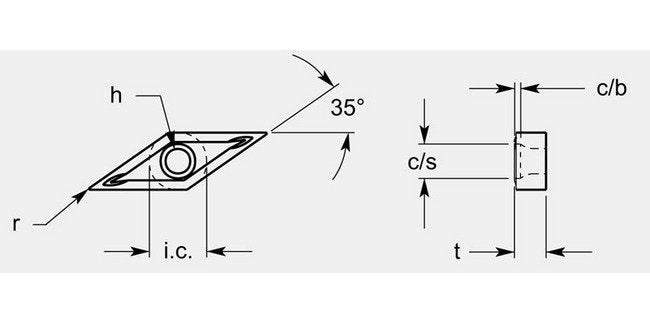

Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Cb
0.038 / 0.044 in
Dimensional Specification Cs
0.233 / 0.239 in
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.204 / 0.211 in
Grade Availability Grade Availability
In Stock
