ISO Style Diamond Negative Turning Blank, 0.104/0.112 in Thickness
ISO Style Diamond Negative Turning Blank, 0.104/0.112 in Thickness
SKU:TUR-1c7dec
High-quality ISO Style Diamond Negative Turning Blank for precision machining, 0.104/0.112 in thickness
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Style Diamond Negative Turning Blank, 0.104/0.112 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
ISO Style Diamond Negative Turning Blank, 0.104/0.112 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Style Diamond Negative Turning Blank is designed with precision and durability in mind, featuring a thickness of 0.104/0.112 inches. Crafted to meet the demands of industrial turning applications, this blank guarantees consistent performance and reliability. Its precise dimensional specifications, including Inscribed Circle, Radius, and Angle, ensure accurate machining results. With Grade Availability assured as 'In Stock', this turning blank is ready to meet your manufacturing needs efficiently.

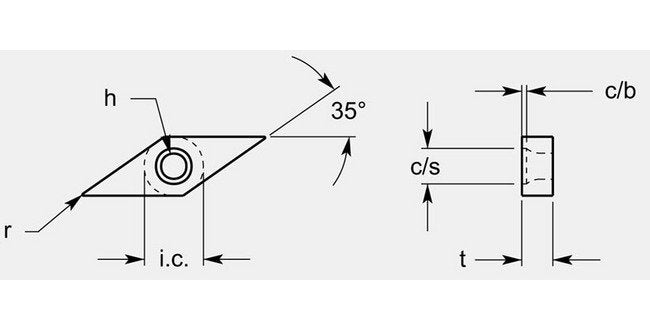

Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Cb
0.019 / 0.027 in
Dimensional Specification Cs
0.155 / 0.160 in
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.104 / 0.112 in
Grade Availability Grade Availability
In Stock
