ISO Style Diamond Negative Turning Blank, 0.166 / 0.174 in
ISO Style Diamond Negative Turning Blank, 0.166 / 0.174 in
SKU:TUR-191c2e
High-grade ISO style diamond negative turning blank for precise turning applications. Thickness: 0.166 / 0.174 in. In stock.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
ISO Style Diamond Negative Turning Blank, 0.166 / 0.174 in
$69.99
Quantity: 1
Claim Your Seller Account
ISO Style Diamond Negative Turning Blank, 0.166 / 0.174 in
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Style Diamond Negative Turning Blank with a thickness range of 0.166 to 0.174 inches is designed for precision turning applications. It features an Inscribed Circle of 0.389 to 0.395 inches, a 35-degree Angle, and a hole diameter of 0.170 to 0.176 inches. This turning blank is made with high-grade materials ensuring durability and performance. In stock and ready for efficient procurement processes.

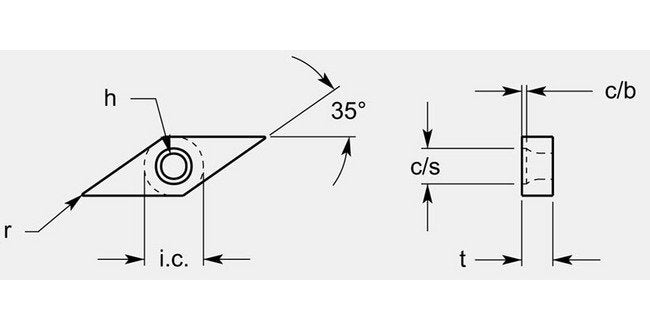

Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Cb
0.046 / 0.052 in
Dimensional Specification Cs
0.233 / 0.239 in
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.166 / 0.174 in
Grade Availability Grade Availability
In Stock
