ISO Style Diamond Negative Turning Blank, 0.198/0.206 in
ISO Style Diamond Negative Turning Blank, 0.198/0.206 in
SKU:TUR-3e2fd7
Enhance turning precision with our ISO Style Diamond Negative Blank - 0.198/0.206 in thickness. In stock for immediate use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Style Diamond Negative Turning Blank, 0.198/0.206 in
$29.99
Quantity: 1
Claim Your Seller Account
ISO Style Diamond Negative Turning Blank, 0.198/0.206 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision in turning operations with our ISO Style Diamond Negative Turning Blank. Crafted for exceptional performance, this turning blank features a thickness of 0.198/0.206 inches, an Inscribed Circle of 0.514/0.520 inches, and an Angle of 55 degrees. The precise hole measuring 0.213/0.219 inches ensures accurate machining, while the superior C/S and CB dimensions guarantee unmatched efficiency. In stock and ready for deployment.
Product Specifications

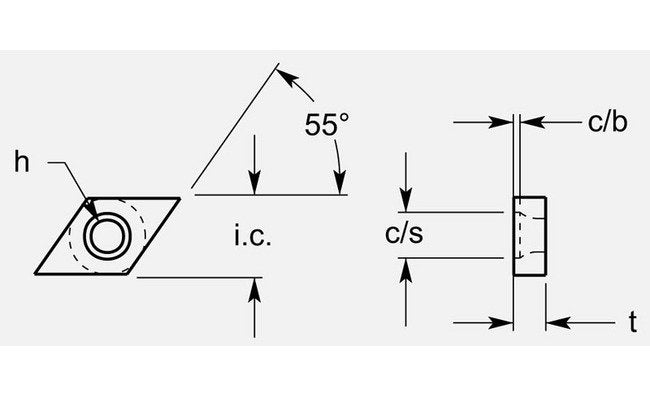

Dimensional Specification Angle A
55 º
Dimensional Specification Cb
0.043 / 0.049 in
Dimensional Specification Cs
0.292 / 0.298 in
Dimensional Specification Hole
0.213 / 0.219 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Grade Availability Grade Availability
In Stock
