ISO Style Diamond Negative Turning Blank, 0.199 / 0.205 in
ISO Style Diamond Negative Turning Blank, 0.199 / 0.205 in
SKU:TUR-aa00ea
Precision ISO Style Diamond Turning Blank for high-performance applications, thickness 0.199 / 0.205 in
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Style Diamond Negative Turning Blank, 0.199 / 0.205 in
$29.99
Quantity: 1
Claim Your Seller Account
ISO Style Diamond Negative Turning Blank, 0.199 / 0.205 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ISO Style Diamond Negative Turning Blank with a thickness of 0.199 / 0.205 inches is a precision-engineered tool designed for high-performance turning applications. With an inscribed circle of 0.389/0.395 inches, an angle of 80 degrees, and hole sizes of 0.170 / 0.176 inches, this turning blank offers exceptional dimensional accuracy and durability. Grade availability can be customized to meet specific requirements upon request.

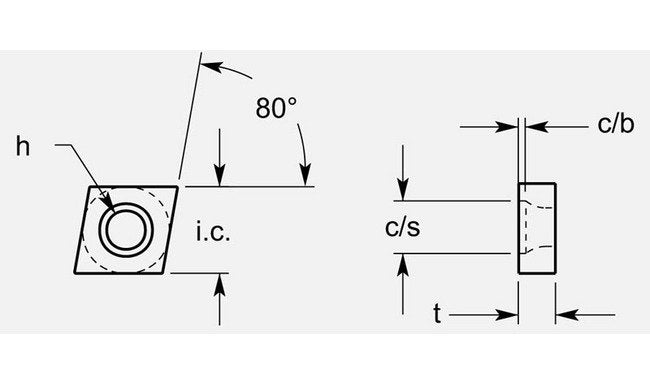

Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.037 in
Dimensional Specification Cs
0.233 / 0.239 in
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Thickness T
0.199 / 0.205 in
Grade Availability Grade Availability
Available on Request
