ISO Style Diamond Negative Turning Blank, 0.229/0.237 in Thickness
ISO Style Diamond Negative Turning Blank, 0.229/0.237 in Thickness
SKU:TUR-78a79a
High-quality ISO Style Diamond Negative Turning Blank for precision turning projects.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Style Diamond Negative Turning Blank, 0.229/0.237 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
ISO Style Diamond Negative Turning Blank, 0.229/0.237 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

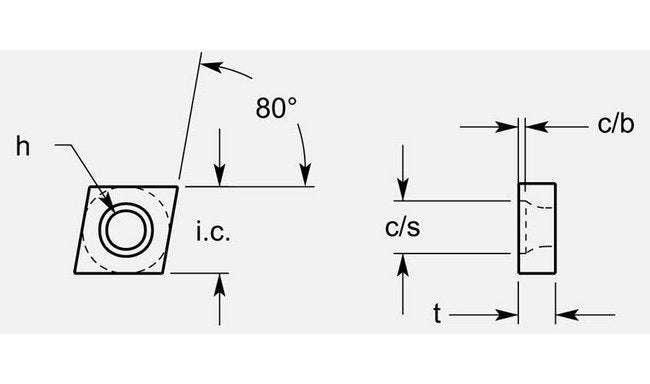

The ISO Style Diamond Negative Turning Blank features a precise thickness of 0.229/0.237 inches, inscribed circle of 0.639/0.645 inches, 80° angle, and hole diameter of 0.221/0.227 inches. This turning blank is expertly crafted to meet the highest standards of durability and precision, making it ideal for industrial applications. Available grades can be requested to suit specific project requirements.
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.039 / 0.045 in
Dimensional Specification Cs
0.317 / 0.323 in
Dimensional Specification Hole
0.221 / 0.227 in
Dimensional Specification Inscribed Circle Ic
0.639/0.645 in
Dimensional Specification Thickness T
0.229 / 0.237 in
Grade Availability Grade Availability
Available on Request
