ISO Style Diamond Negative Turning Blank, 0.236 / 0.244 in
ISO Style Diamond Negative Turning Blank, 0.236 / 0.244 in
SKU:TUR-4f3c69
Precision ISO Style Diamond Negative Turning Blank for accurate machining operations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
ISO Style Diamond Negative Turning Blank, 0.236 / 0.244 in
$49.99
Quantity: 1
Claim Your Seller Account
ISO Style Diamond Negative Turning Blank, 0.236 / 0.244 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

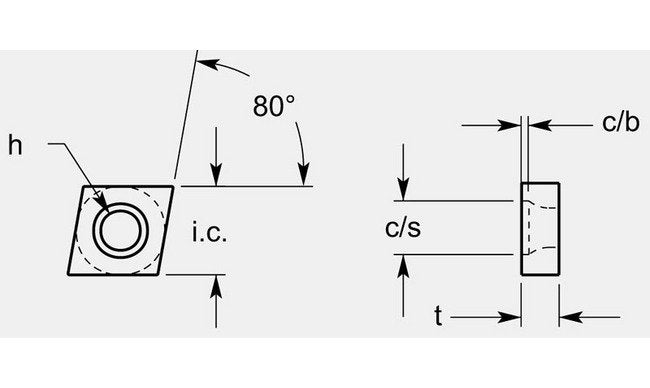

The ISO Style Diamond Negative Turning Blank, with a thickness of 0.236 / 0.244 inches, is a precision-engineered tool designed for turning operations. It features an Inscribed Circle of 0.639-0.645 inches, an Angle of 80 degrees, and a precise hole size of 0.221-0.227 inches. The robust construction ensures durability and reliability during machining processes. Grade availability can be customized upon request for specific applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.039 / 0.045 in
Dimensional Specification Cs
0.317 / 0.323 in
Dimensional Specification Hole
0.221 / 0.227 in
Dimensional Specification Inscribed Circle Ic
0.639/0.645 in
Dimensional Specification Thickness T
0.236 / 0.244 in
Grade Availability Grade Availability
Available on Request
