ISO Style Parallelogram Milling Blank with Chipbreaker, 0.174 / 0.180 in Thickness
ISO Style Parallelogram Milling Blank with Chipbreaker, 0.174 / 0.180 in Thickness
SKU:MIL-403033
Boost milling precision with our ISO Style Parallelogram Milling Blank, 0.174-0.180 in thickness. Custom grades available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
ISO Style Parallelogram Milling Blank with Chipbreaker, 0.174 / 0.180 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
ISO Style Parallelogram Milling Blank with Chipbreaker, 0.174 / 0.180 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance milling efficiency with our ISO Style Parallelogram Milling Blank featuring a chipbreaker for improved chip control. With a thickness range of 0.174 to 0.180 inches, this blank ensures precise cutting performance. The ISO Style Hole adds versatility to accommodate various machining needs. Available in different grades upon request.

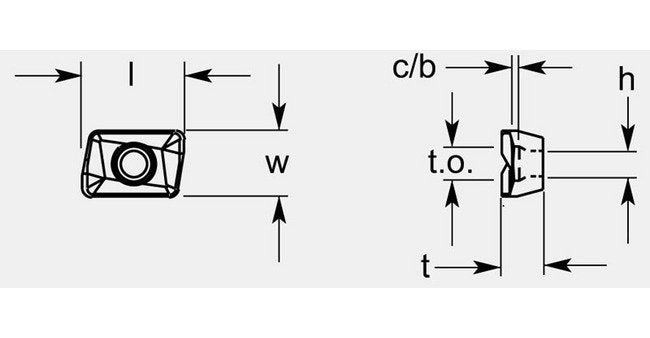

Product Specifications
Dimensional Specification Cb
0.037 / 0.043 in
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification L
0.406 / 0.412 in
Dimensional Specification Thickness T
0.174 / 0.180 in
Dimensional Specification To
0.143 / 0.149 in
Dimensional Specification Width W
0.277 / 0.283 in
Grade Availability Grade Availability
Available on Request
