ISO Style Parallelogram Milling Blank with Chipbreaker, 0.212 / 0.216 in
ISO Style Parallelogram Milling Blank with Chipbreaker, 0.212 / 0.216 in
SKU:MIL-2edba8
Enhance machining precision with our ISO Style Milling Blank, 0.212 / 0.216 in thickness.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
ISO Style Parallelogram Milling Blank with Chipbreaker, 0.212 / 0.216 in
$39.99
Quantity: 1
Claim Your Seller Account
ISO Style Parallelogram Milling Blank with Chipbreaker, 0.212 / 0.216 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your milling operations with our ISO Style Parallelogram Milling Blank. Featuring a precise thickness of 0.212 / 0.216 inches, a radius of 0.25 inches, and a width of 0.390 / 0.394 inches, this blank ensures accurate and efficient machining. The chipbreaker design enhances chip control, while the ISO Style Hole of 0.177 / 0.183 inches allows for seamless installation. Grade availability can be tailored to specific requirements upon request.

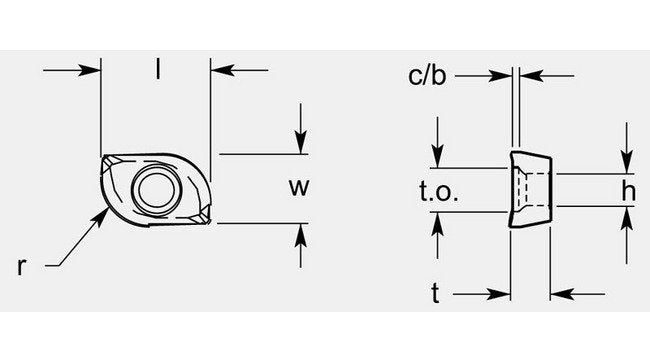

Product Specifications
Dimensional Specification Cb
0.027 / 0.033 in
Dimensional Specification Hole
0.177 / 0.183 in
Dimensional Specification L
0.593 / 0.597 in
Dimensional Specification Radius R
0.25 in
Dimensional Specification Thickness T
0.212 / 0.216 in
Dimensional Specification To
0.245 / 0.251 in
Dimensional Specification Width W
0.390 / 0.394 in
Grade Availability Grade Availability
Available on Request
