ISO Style Parallelogram Milling Blank with Chipbreaker, Thickness 0.224/0.228 in
ISO Style Parallelogram Milling Blank with Chipbreaker, Thickness 0.224/0.228 in
SKU:MIL-6e09e8
Maximize milling precision with our ISO Style Milling Blank. Chipbreaker included. Thickness: 0.224/0.228 in.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
ISO Style Parallelogram Milling Blank with Chipbreaker, Thickness 0.224/0.228 in
$39.99
Quantity: 1
Claim Your Seller Account
ISO Style Parallelogram Milling Blank with Chipbreaker, Thickness 0.224/0.228 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance milling efficiency with this high-grade ISO Style Parallelogram Milling Blank featuring a chipbreaker for smoother operations. Precision-engineered with dimensions of 0.224/0.228 in thickness, 0.373/0.377 in width, and 0.612/0.616 in length. Designed to meet rigorous industry standards and ensure optimal performance in square shoulder milling applications. Grade availability can be customized to suit specific requirements.

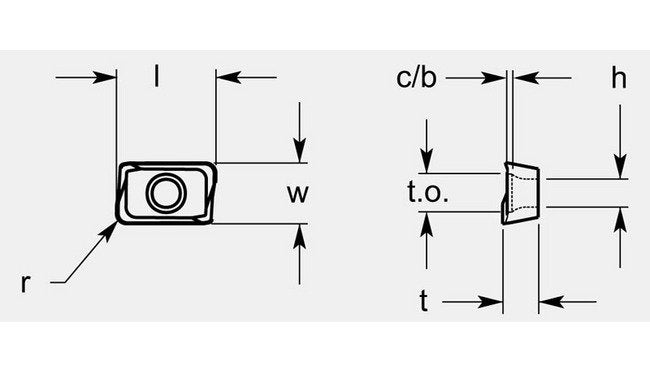

Product Specifications
Dimensional Specification Cb
0.027 / 0.033 in
Dimensional Specification Hole
0.176 / 0.182 in
Dimensional Specification L
0.612 / 0.616 in
Dimensional Specification Radius R
0.063 in
Dimensional Specification Thickness T
0.224 / 0.228 in
Dimensional Specification To
0.244 / 0.250 in
Dimensional Specification Width W
0.373 / 0.377 in
Grade Availability Grade Availability
Available on Request
