ISO Style Square Negative Turning Blank, 0.198 / 0.206 inches
ISO Style Square Negative Turning Blank, 0.198 / 0.206 inches
SKU:TUR-25ac84
Premium ISO Style Square Negative Turning Blank, 0.198 / 0.206 in, Grade options available on request.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
ISO Style Square Negative Turning Blank, 0.198 / 0.206 inches
$34.99
Quantity: 1
Claim Your Seller Account
ISO Style Square Negative Turning Blank, 0.198 / 0.206 inches
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

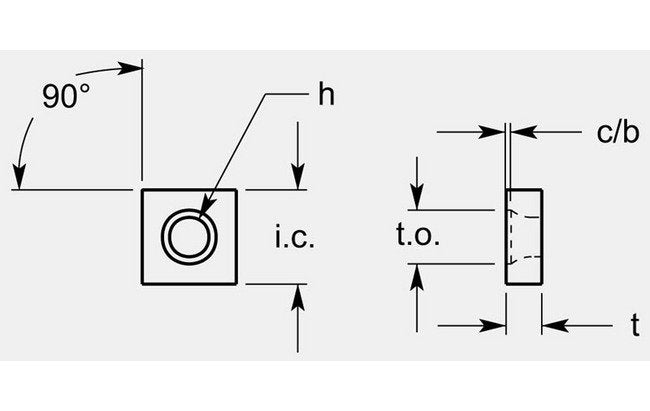

The ISO Style Square Negative Turning Blank is crafted with precision, featuring a thickness of 0.198 / 0.206 inches, an Inscribed Circle of 0.639 / 0.645 inches, and a 90-degree Angle. With a hole size of 0.173 / 0.177 inches, Combined Thickness (CB) of 0.038 / 0.046 inches, and Turning Operation (TO) size of 0.233 / 0.239 inches, this blank offers exceptional quality and durability. Grade Availability can be tailored to meet specific requirements upon request, ensuring compliance with stringent industry standards.
Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.038 / 0.046 in
Dimensional Specification Hole
0.173 / 0.177 in
Dimensional Specification Inscribed Circle Ic
0.639/0.645 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Dimensional Specification To
0.233 / 0.239 in
Grade Availability Grade Availability
Available on Request
