Enhance your turning projects with precision using our ISO style square negative turning blanks. These blanks are meticulously crafted with a thickness of 0.140/0.146 inches, ensuring exceptional accuracy in your machining processes. The inscribed circle measures 0.389/0.395 inches with a hole diameter of 0.171/0.177 inches. With a perfect 90-degree angle, these blanks guarantee efficient performance and reliability. Available in various grades to suit your specific requirements, our turning blanks are ideal for industrial and institutional applications.
Product Specifications

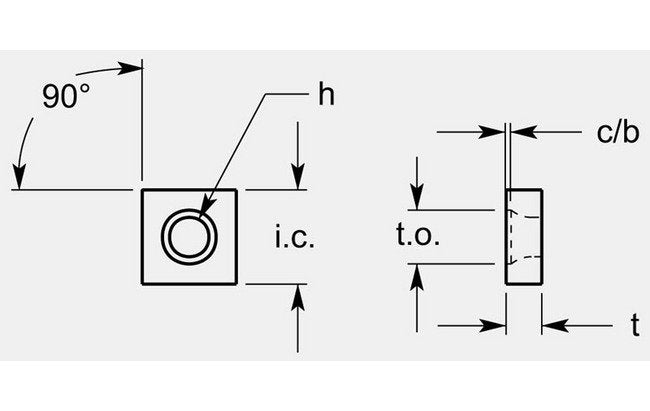

Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.046 / 0.052 in
Dimensional Specification Hole
0.171 / 0.177 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Thickness T
0.140 / 0.146 in
Dimensional Specification To
0.233 / 0.239 in
Grade Availability Grade Availability
Available on Request
