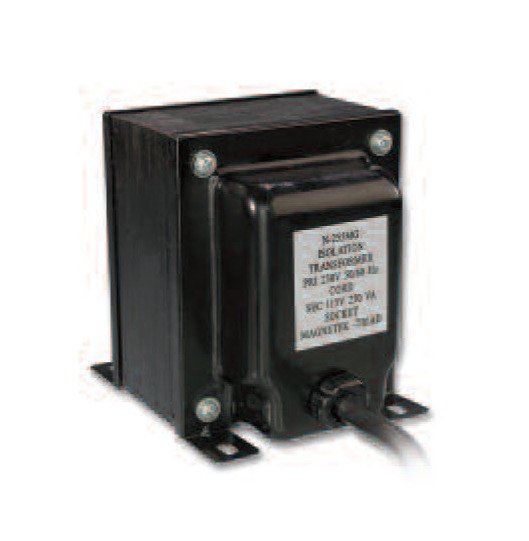

Our Isolation Power Transformers are expertly designed to isolate equipment from direct connection to the power line, ensuring safety and reliability. Specifically crafted for medical facilities, our hospital-grade transformers meet stringent low leakage current requirements for medical equipment. Featuring nonconcentrically wound coils and primary-secondary separation with laminate core insulation, these units prevent electrical connection between windings, even under overload. Equipped with a resettable circuit breaker for added protection from overload and short circuit conditions, our transformers are a secure choice for critical environments.
Product Specifications
Note Note
With ground wire
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
6 1/4 in
Specifications Height H
5 5/16 in
Specifications Mounting Depth
5 1/8 in
Specifications Mounting Hole Size
1/2 x 1/4 in
Specifications Mounting Width
3 1/2 in
Specifications Output Wattage Va Rating
500 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
4.350 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
23.8 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
