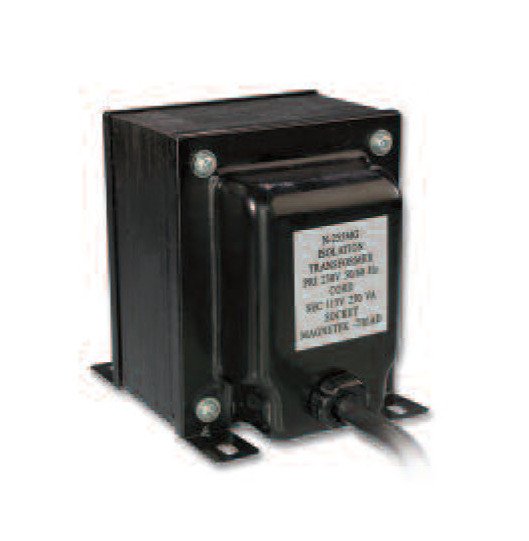

Isolation Power Transformers - Hospital Grade

Isolation Power Transformers - Hospital Grade

POW-de4d16

Isolation Power Transformers - Hospital Grade with low leakage current and resettable circuit breaker for safe medical equipment use.

$299.99
$299.99
Sale

Initiate Order

Isolation Power Transformers - Hospital Grade

Isolation Power Transformers - Hospital Grade

$299.99

Quantity: 1

Claim Your Seller Account

Isolation Power Transformers - Hospital Grade

Isolation Power Transformers - Hospital Grade

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Isolation Power Transformers are essential for isolating equipment from direct power connections, offering versatile voltage options and hospital-grade construction with low leakage current. Designed with separate primary and secondary winding arbors and a resettable circuit breaker, these transformers ensure safe and reliable operation in medical environments. Nonconcentrically wound coils and insulation between windings prevent electrical connections, meeting the stringent requirements of modern medical equipment.

Product Specifications

Note Note
Leakage current from primary to secondary is rated at less than 50 micro-amps and is typically measured at less than 10 micro-amps.
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket Circuit Breaker
Specifications Depth D
7 in
Specifications Height H
5 11/32 in
Specifications Mounting Depth
5 3/8 in
Specifications Mounting Hole Size
21/32 x 9/32 in
Specifications Mounting Width
31/2 in
Specifications Output Wattage Va Rating
500 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Rms Current
4.35 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
17.60 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
