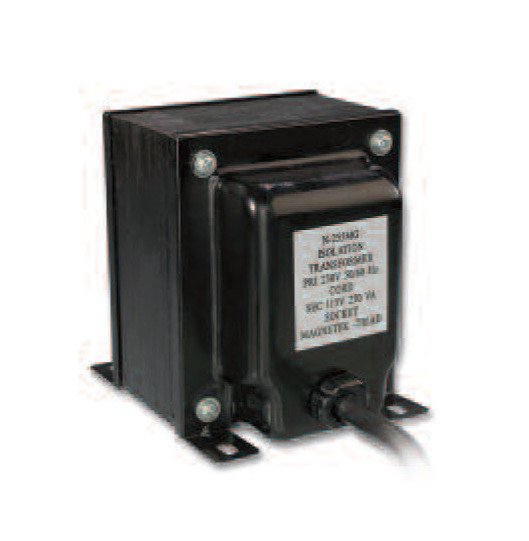

Isolation Power Transformers - Hospital Grade MD

Isolation Power Transformers - Hospital Grade MD

POW-40a5f2

Ensure equipment safety with our versatile Isolation Power Transformers. Hospital-grade MD models meet stringent medical equipment standards.

$249.99
$249.99
Sale

Initiate Order

Isolation Power Transformers - Hospital Grade MD

Isolation Power Transformers - Hospital Grade MD

$249.99

Quantity: 1

Claim Your Seller Account

Isolation Power Transformers - Hospital Grade MD

Isolation Power Transformers - Hospital Grade MD

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Our Isolation Power Transformers are meticulously designed to isolate equipment from direct power connection, ensuring safety and reliability. Available in various voltages and case types, the hospital-grade MD suffix models meet stringent low leakage current standards for medical equipment. Constructed with nonconcentrically wound coils, these transformers feature separate primary and secondary windings on insulated arbors, preventing electrical connections even under overload conditions. Complete with a resettable circuit breaker, these units offer protection from overloads and short circuits, making them ideal for medical environments.

Product Specifications

Note Note
With ground wire
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
7 1/8 in
Specifications Height H
5 5/16 in
Specifications Mounting Depth
6 in
Specifications Mounting Hole Size
1/2 x 1/4 in
Specifications Mounting Width
3 1/2 in
Specifications Output Wattage Va Rating
1,000 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
8.700 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
31.00 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
