Isolation Power Transformers - Medical Grade
Isolation Power Transformers - Medical Grade
SKU:POW-a6354c

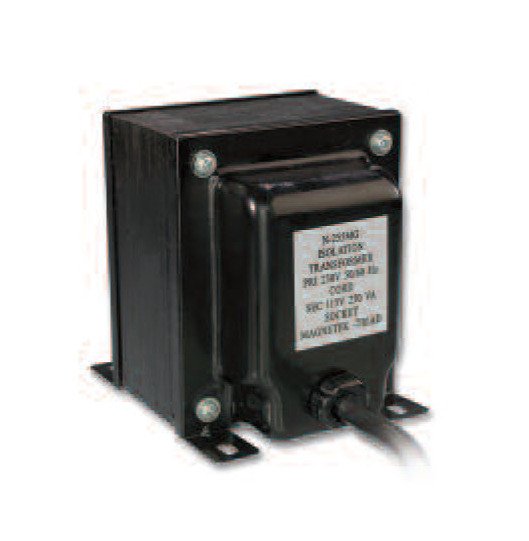

Isolation Power Transformers for medical equipment, built with nonconcentrically wound coils & resettable circuit breaker for overload protection.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Isolation Power Transformers - Medical Grade
$299.99
Quantity: 1
Claim Your Seller Account
Isolation Power Transformers - Medical Grade
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Isolation Power Transformers are designed to meet the stringent low leakage current requirements for medical equipment, ensuring complete isolation from the power line. Featuring nonconcentrically wound coils for enhanced safety, these transformers come in varying voltages and case types. The hospital type units include a resettable circuit breaker for protection against overload and short circuits, making them ideal for medical applications.
Product Specifications
Note Note
With ground wire
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
4 1/8 in
Specifications Height H
3 19/32 in
Specifications Mounting Depth
2 7/8 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
2 1/4 in
Specifications Output Wattage Va Rating
85 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
0.740 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
4.70 lb
Specifications Width W
2 31/32 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
