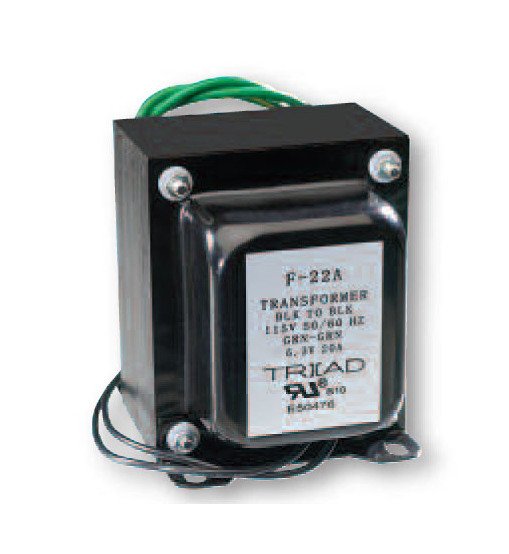

Isolation Power Transformers - Medical Grade
Isolation Power Transformers - Medical Grade
SKU:POW-64f710
Isolation Power Transformers - Ensuring safe power isolation for medical equipment with hospital-grade construction and protective features.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Isolation Power Transformers - Medical Grade
$149.99
Quantity: 1
Claim Your Seller Account
Isolation Power Transformers - Medical Grade
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Isolation Power Transformers are essential for isolating equipment from direct power connection, meeting the low leakage current requirements for medical devices. Designed with a nonconcentric coil construction, the separate primary and secondary windings prevent electrical connections under any conditions. These hospital-grade transformers feature resettable circuit breakers for overload and short circuit protection, ensuring reliable and safe power isolation for medical equipment.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Split winding
Specifications Case Type
A
Specifications Connections
Leads
Specifications Depth D
3 7/8 in
Specifications Height H
3 7/8 in
Specifications Lead Holes Used
2
Specifications Mounting Depth
3 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
2 1/2 in
Specifications Output Wattage Va Rating
150 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Current
1.300 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
7.00 lb
Specifications Width W
3 9/32 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
